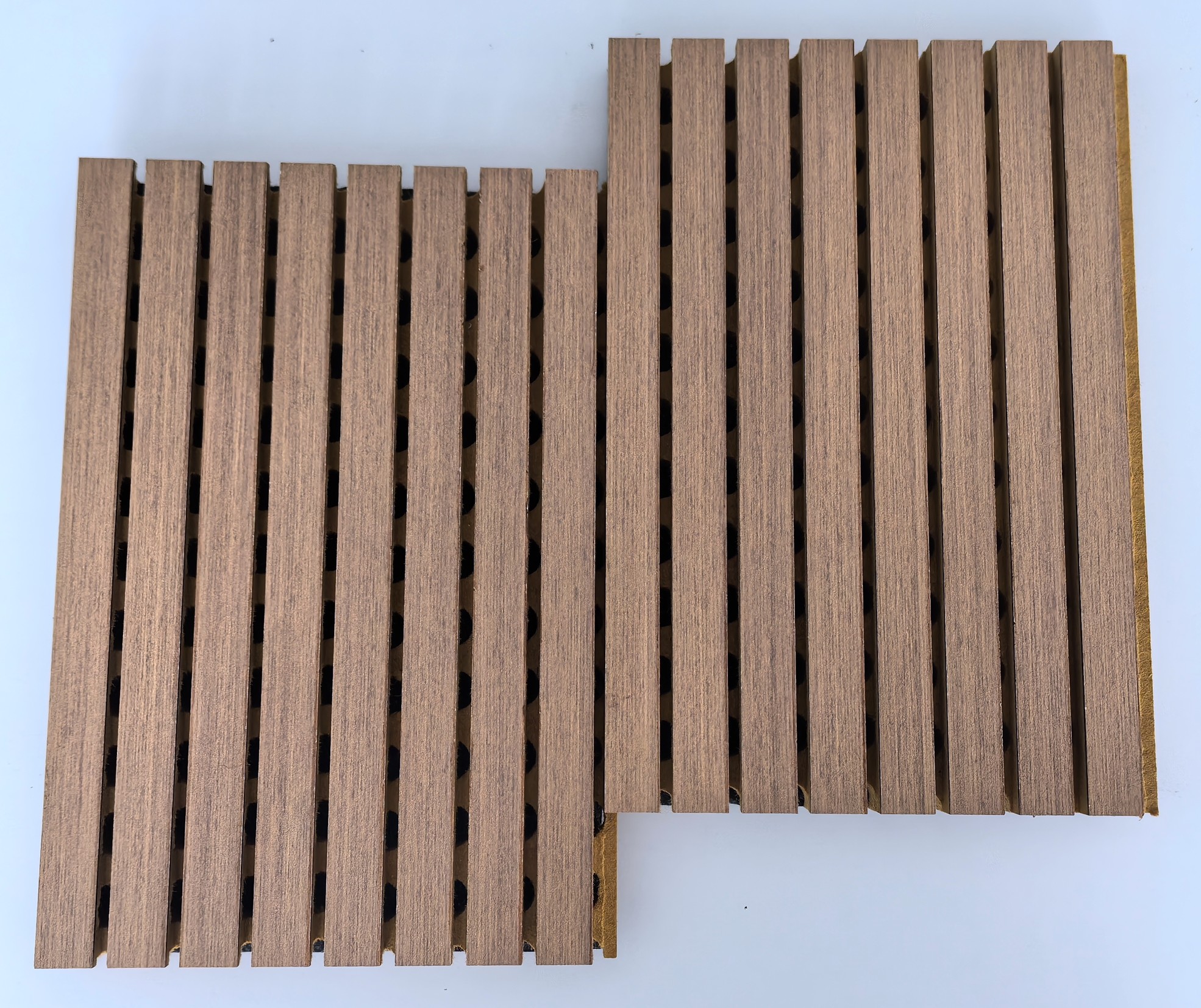

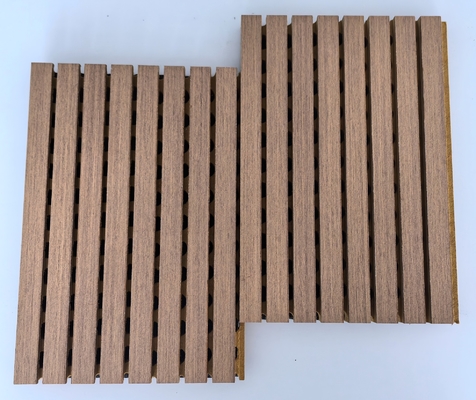

28/4mm Soundproofing Grooved Acoustic Panel Interior Decoration Ceiling Board

Wooden grooved acoustic panel is made up of a series of slats and grooves.

Each panel has a machined tongue and groove joint for a seamless joinery.

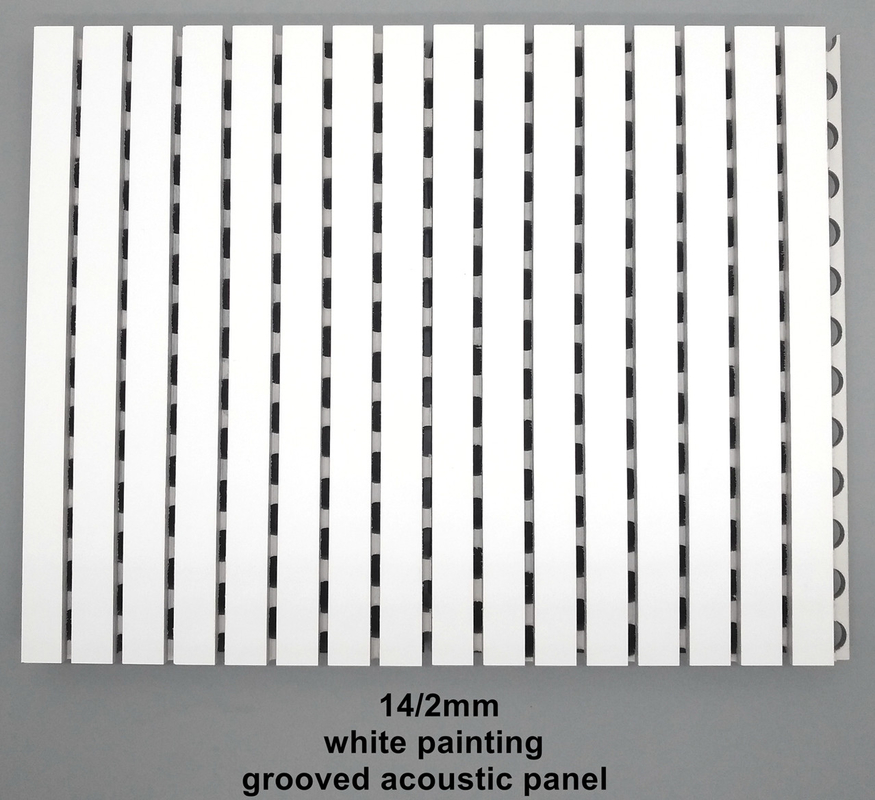

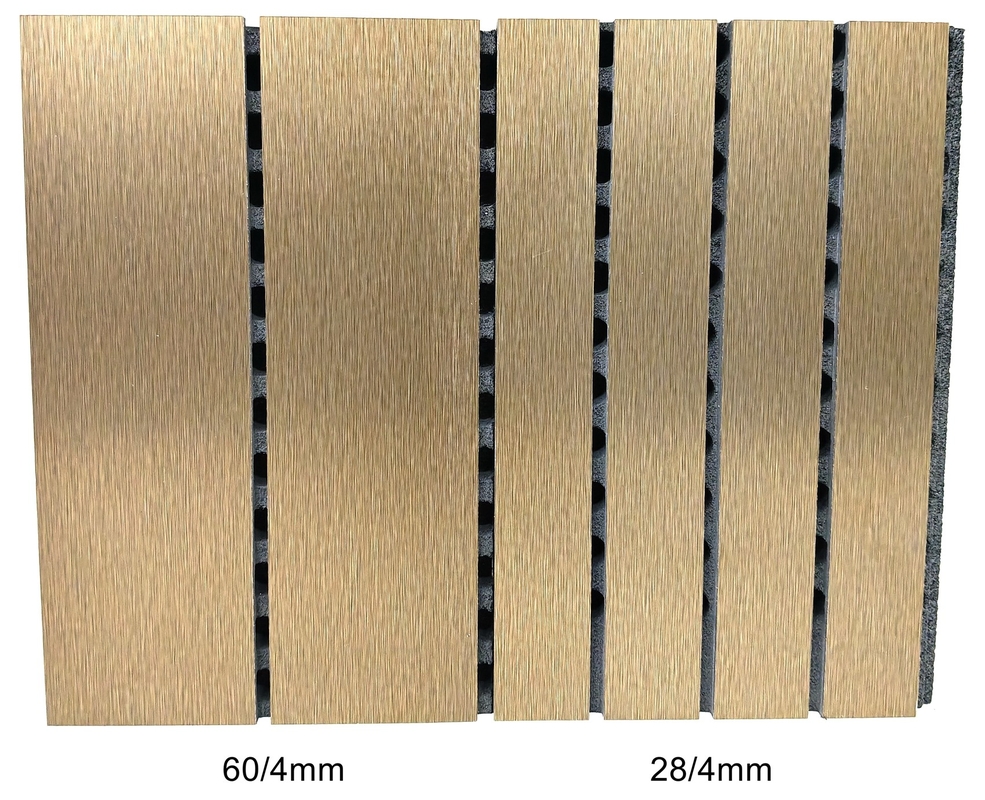

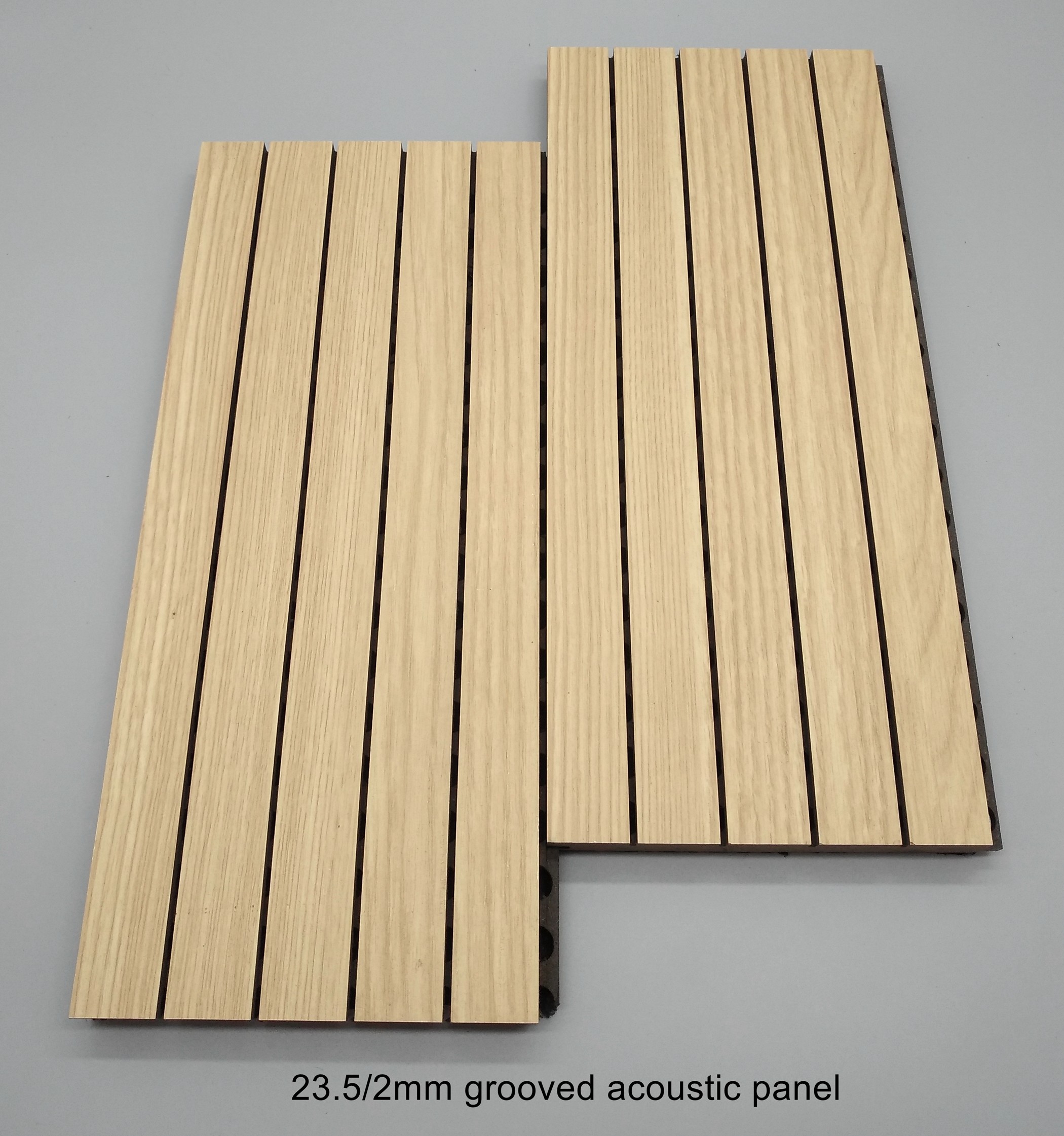

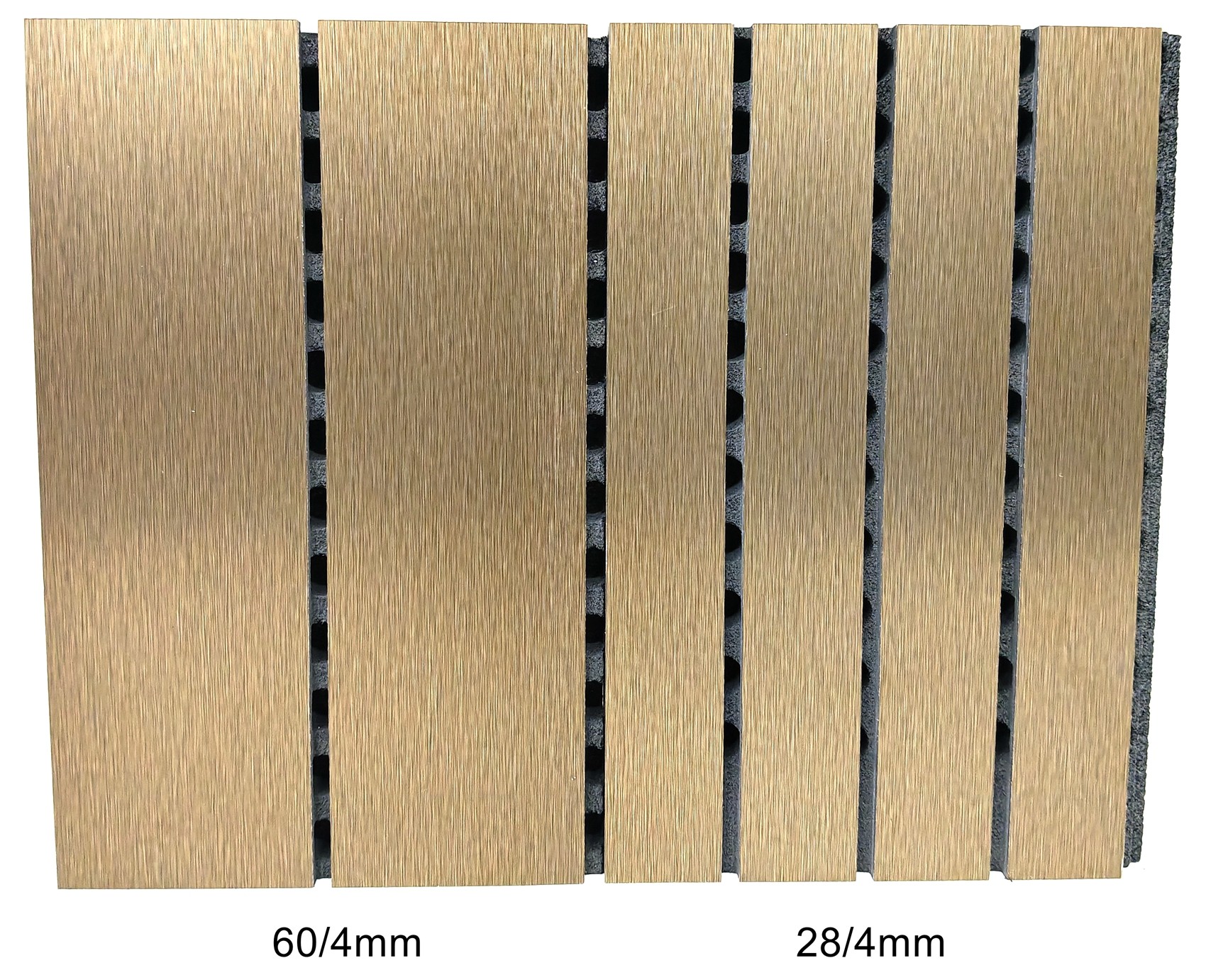

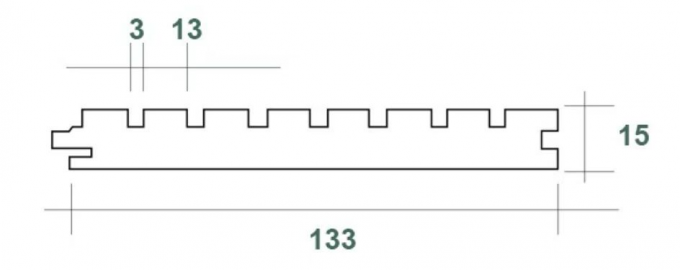

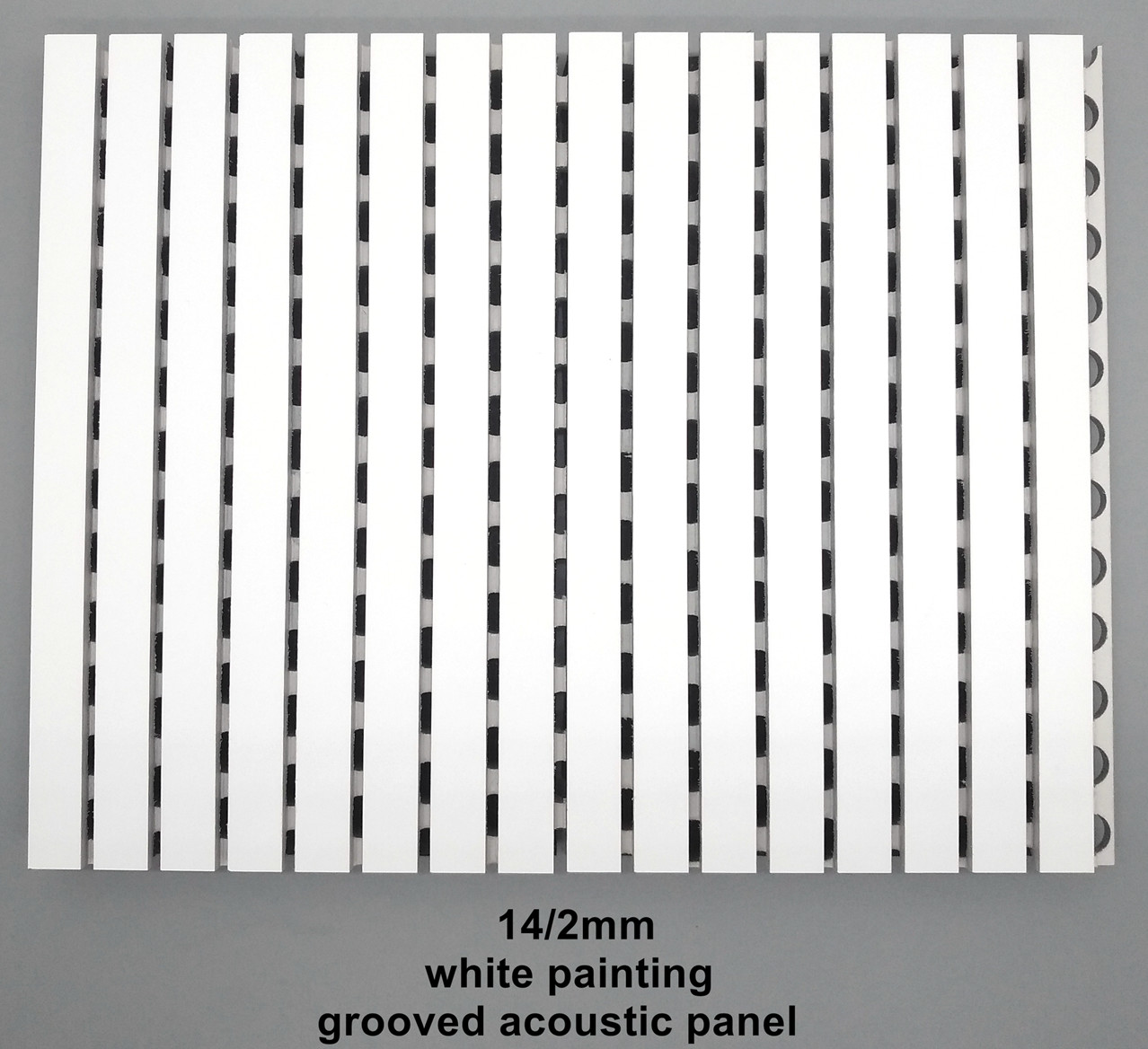

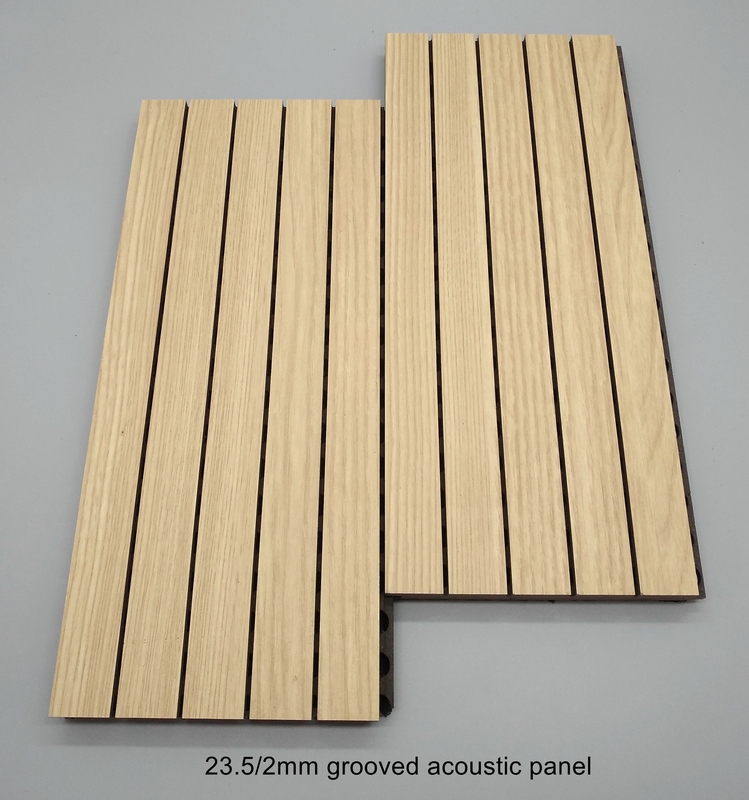

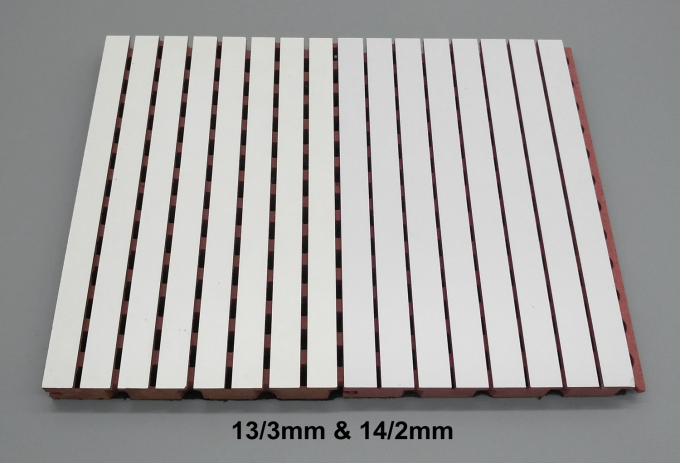

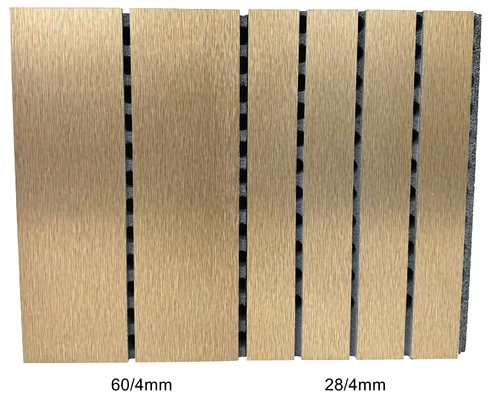

Grooved acoustic panels have different patterns : 5-3mm ,13-3mm, 14-2mm, 24-2mm, 28-4mm, 59-5mm, 60-4mm ect .

Product Introduction

NRC Test Report

Finish Option

The specific color is selected from the color card .

Installation Method

Grooved acoustic panel are typically installed on to battens in a simple tongue and groove fashion to create a seamless finish . The cavity should include a sound absorbing mineral fiber or acoustic foam which will together help increase the acoustic performance . Panel can be mounted either with grooves running horizontally or vertically .
Left : A typical installation with panels mounted on 50mm plywood battens , black tissue to the rear of the panels and 50mm of mineral fiber or acoustic foam in the cavity .

For the ceiling , the same approach can be taken and applied plywood strips which are in turn fixed to an ceiling system . The planks are glued and pinned through the grooves , with mineral fiber or acoustic foam in the cavity to together help create to increase sound absorption .

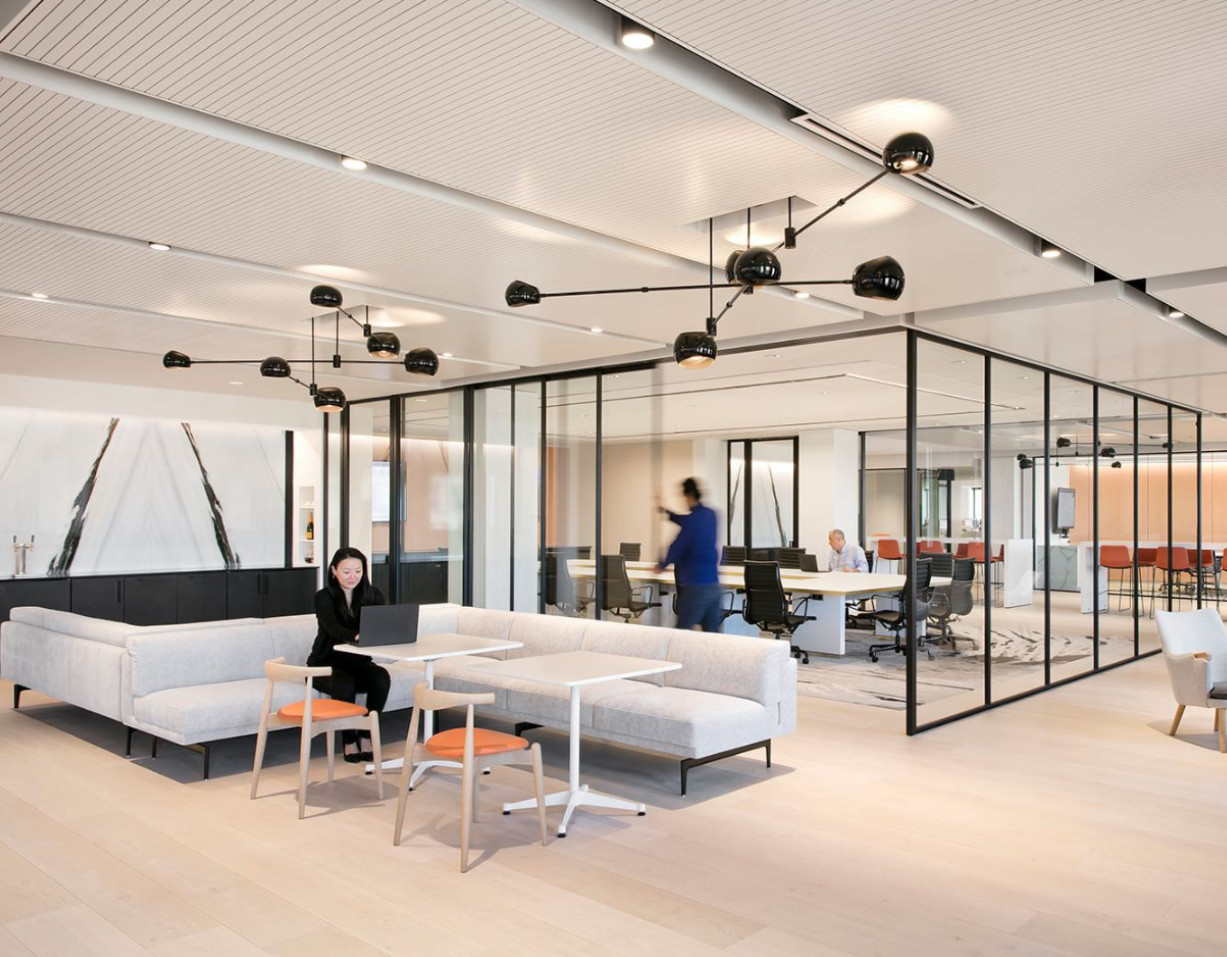

Project Case

FAQ

1. Q :  Is it better to place acoustical panels on the walls or ceiling?

A: In many cases, the decor of the room will determine where you can place acoustic panels. In many commercial properties, there are many glass walls or partitions. In this case, the only available surface will be the ceiling, or a temporary removable acoustic panel is recommended.

2. Q: What scenarios are grooved sound-absorbing panels suitable for ?

A: Opera, theater, studio, recording studio, television studio, radio station, business hall, multi-function hall, conference room, banquet hall, auditorium, gymnasium.
