| Place of Origin: | China |
|---|---|
| Brand Name: | Brotex Acoustic |
| Certification: | FSC / ISO / SGS / Intertek |
| Model Number: | 13/3mm |
| Minimum Order Quantity: | 50㎡ |
| Price: | $25.42 -$37.98 /㎡ |
| Packaging Details: | Carton / Pallet |
| Delivery Time: | 2 weeks |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 ㎡/ month |
| Pattern: | 13/3mm | NRC: | 0.7 |
|---|---|---|---|
| Finish: | Real Veneer / Laminate / Melamine | Laminate: | Lamitak / Formica / TBC |
| Core: | Charcoal Board / MDF | Fireproof: | Class B |
| Fleece: | Soundtex / Standard | Standard Panel Size: | 2440*128mm / 2440*197mm Or TBC |
| Standard Core Thick: | 15mm / 18mm / TBC | Hole Design: | Square / Rhombic |
| Edge Option: | Tongue & Grooved | Woodgrain: | Along Length / Along Width |
| Installation: | Wall / Ceiling | Application: | Auditorium / Conference Hall / School / Office |
| Highlight: | Slat acoustic ceiling panels,Grooved acoustic ceiling panels,Slat grooved mdf panels |
||

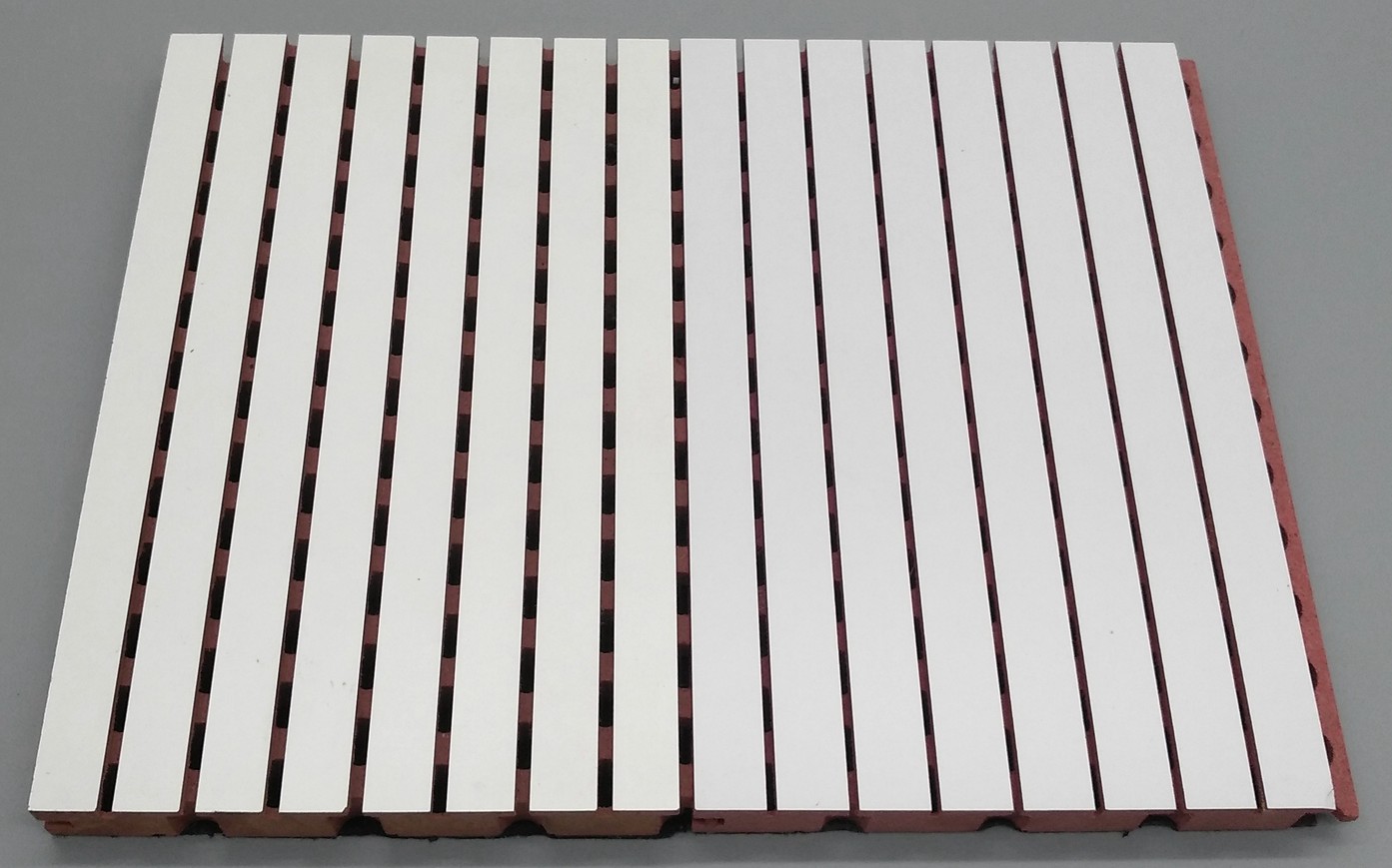

13/3mm White Laminate Slat Acoustic Panel Office Linear Wooden Soundproof Board
Grooved acoustic panel solutions , a clean , linear approach to acoustics .
Profiles are created with 2mm , 3mm and 4mm grooves with different spacing options .
The grooved wood panels are suitable for both wall and ceiling , it have natural wood veneer laminate onto the perforated fire-rate MDF core with a variety of surface grooving options on the face , and an acoustical black fleece on the rear of the panel as the whole structure .
|
Pattern |
13/3mm / 14/2mm / 28/4mm TBD |
|
Finish |
Real veneer / laminate / melamine |
|
Core |
Charcoal board / MDF |
|
Fleece |
Soundtex / Standard |
|
Standard panel size |
2440*128mm / 2440*197mm / TBD |
|
Standard core thick |
15mm / 18mm / TBD |
|
Hole option |
Standard |
|
Edge option |
Standard tongue & grooved |
Dimensions :
The panels can be manufactured to the desired size with approval shop drawings ,
thereby requiring no filed cutting for faster installation .
Brotex Acoustic leading production capabilities make the largest panels in the industry 3000*128/197mm as customized .
Edges Tongue & Grooved :
Sustainability :
FSC certified 70.8% pre-consumer recycled content
Acoustic Performance :
NRC = 0.7 base on ISO 354:2003 Acoustics-Measurement of Sound Absorption in a Reverberation Room .
Indoor Air Quality :
TOVs with reference to ISO 16000-9:2006/ COR1-2007 & ISO 16000-6:2021 & ISO 16000-3:2022
Fire performance :
Fire-Rated Test = Class A by ASTM E84-15b Standard Test Method for Surface Burning Characteristics of Building Materials .
Wood veneer :
The panel can be customized in a variety of wood veneers.
Brotex Acoustic lays up its own veneer in 12 units as the standard items .
More slip-matched , custom lay-up options and a control sample match all are avaliable .
Note : These color samples are reproduced by a printing process so the colors represented may not match the wood's actual color , in addition since no two trees are identical , wood can be expected to differ both in color and graining .
This is what makes wood so beautiful. Stained sample will be provided for approval before project goes into production .
Wall job reference :
Please kindly contact us for more acoustic panel project inspire ideas .
