Wood wool acoustic panels are sound-absorbing panels created from wood fibers. Compressed into rigid boards for use as sound absorption material,
these durable and environmentally friendly boards offer outstanding sound absorption properties while remaining eco-friendly.
Wood wool acoustic panels stand out as one of the greatest advantages to using them as noise absorbers,
thanks to the combination of wood fibers and cement creating a porous structure that
effectively absorbs sound waves reducing echo and reverberation in any given space.
They make ideal solutions for recording studios, auditoriums, offices and restaurants where noise control is vitally important.
Woodwool panels not only offer excellent acoustic performance, but also aesthetic value.
Their natural textures and warm wood fibers add warmth and elegance to any space;
or these interior wood panel walls can be painted various colors to match the desired interior design style.
The advantage of wood wool acoustic panel
- ECOLOGY. The material is produced in nature-friendly way.
- HEALTH. Provides a human-friendly, favouralbe environment.
- AESTHETICS. A wide range of colours, textures and finishes.
- ACOUSTICS. Excellent sound insulating and absorbing properties.
- DURABILITY. Does not become deformed, does not lose its properties over time.
- FIRE SAFETY. High fire safety indicators (B-s1, d0).
- HEAT-INSULATION. Excellent insulation properties.
- 100% NATURAL INGREDIENTS. Wood wool, water, cement.
Product Introduction
|
Material
|
Import New Zealand poplar wood
|
|
Wood fiber width
|
1mm / 2mm / 3mm / TBD
|
|
Panel standard thick
|
15mm / 25mm / 38mm / 50mm ect
|
|
Finish
|
Nature / Panting
|
|
Color
|
Choose from RAL , DULUX ect
|
|
Panel Size
|
1200*600mm / 2440*1220mm / TBD
|
|
Edge treatment
|
90° clean cut / 45° beveling
|
Tolerance and specifications
The following General Tolerances Apply for all SKUs
|
Requirement
|
Dimension /
Specification
|
Tolerance
|
|
Beveled Edge
|
45%
|
±5%
|
|
Beveled Edge
Moisture Content
(Before Cutting Process)
|
8.5 mm
|
±2 mm
|
|
Moisture Content
(Final Inspection)
|
25 %
|
± 15% (10% to 40% MC)
|
|
Wood Fiber Thickness
|
1mm (3/64")
|
± 0.25mm (± 0.010")
|
|
Panel Flatness
|
5mm Maximum
|
Range: 0mm to 5mm
|
Panel Flatness Measurement
NRC Test Report
According to BS EN ISO 354:2003 “Acoustics -Measurement of sound absorption in a reverberation room"
(equivalent to GB/T 20247-2006)in the Acoustic Testing Services Limited.
Painting Color Options
RAL or DULUX color card or provide us the colors to match the most similar one .
Edge Option
Wall Installation Method

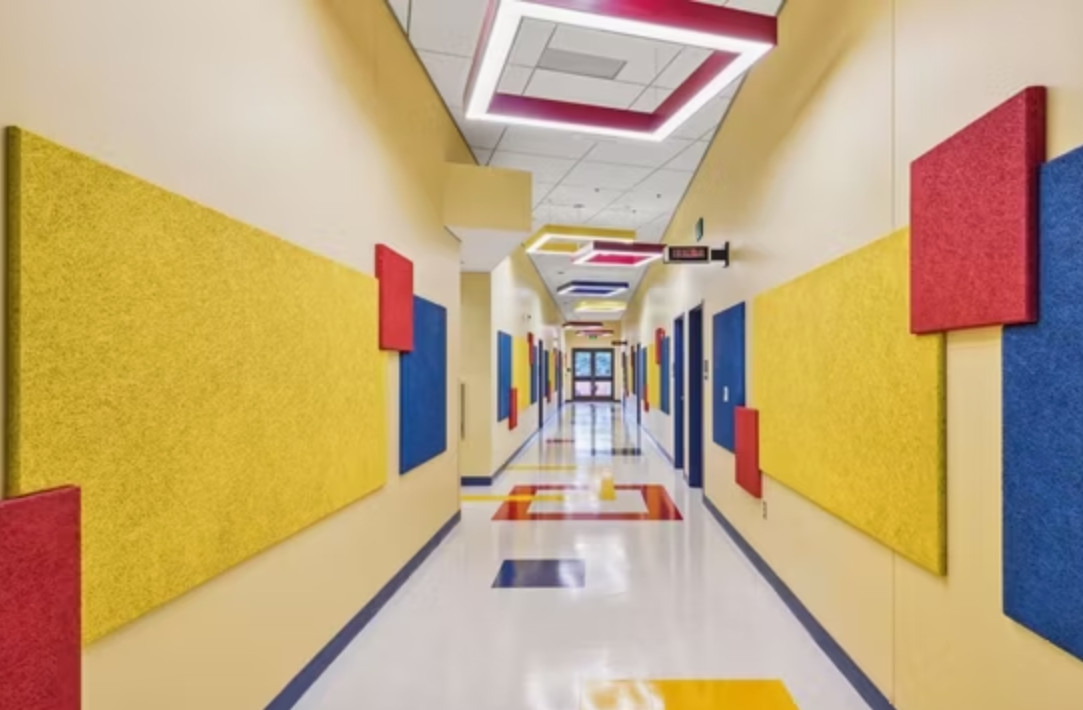

Project Case
3. Q : Can I install wood wool acoustic panel at ceiling outdoors ?
A :Yes , the cement contents ensure that the panel are not damaged by moisture , therefore ,
it is very suitable for e.g. under eaves and under lean-to roofs .
