| Place of Origin: | China |
|---|---|
| Brand Name: | Brotex Acoustic |
| Certification: | FSC , SGS , ISO , Intertek |
| Model Number: | Hexagon |
| Minimum Order Quantity: | 50㎡ |
| Price: | $ 12.87 - $15.98 /㎡ |
| Packaging Details: | Carton / Pallet |
| Delivery Time: | 1-2 weeks |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Supply Ability: | 10000 ㎡/ month |
| Material: | Import New Zealand Poplar Wood | Panel Standard Thick: | 15mm / 25mm / 38mm / 50mm Ect |
|---|---|---|---|
| Color: | Choose From RAL / DULUX Ect | Panel Size: | 1200*600mm / 2440*1220mm / TBD |
| Edge Treatment: | 90° Clean Cut / 45° Beveling | Finish: | Nature / Panting |
| Anti-mould: | Avaliable | Application: | School / Office / Church / Stadium TBD |
| Highlight: | Triangle Dulux Wood Wool Acoustic Panel,Office Wall Wood Wool Acoustic Panel,Triangle Dulux wood wool tiles |
||

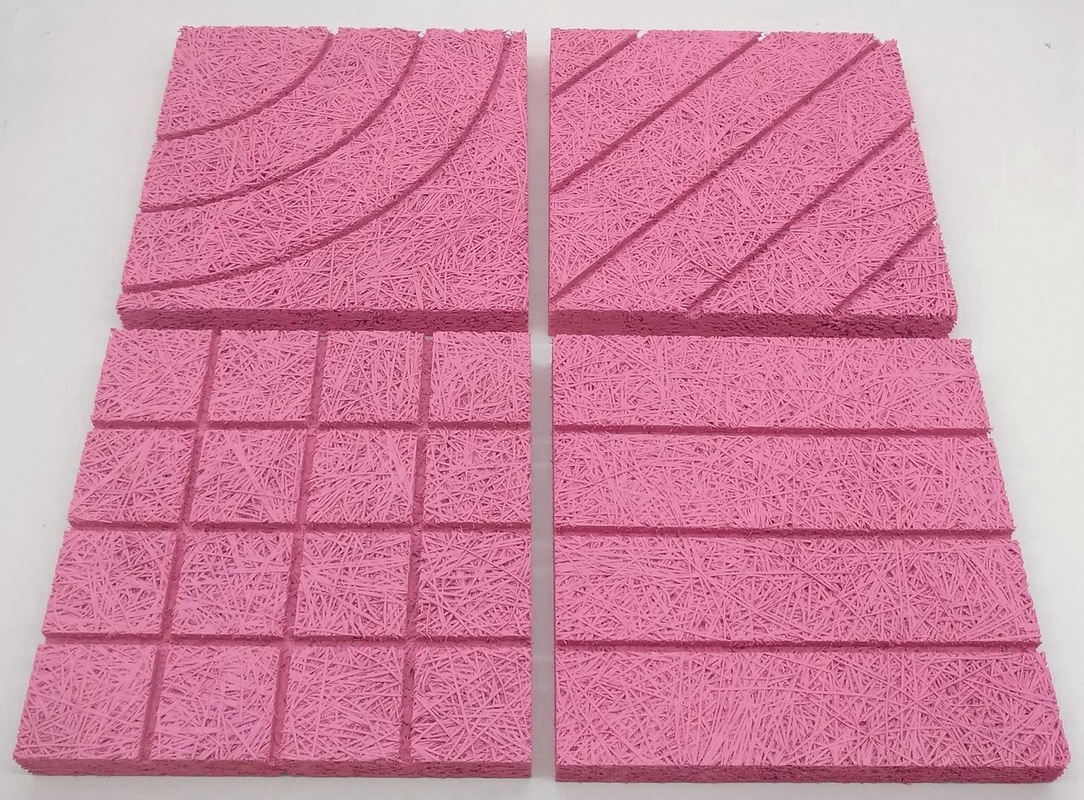

Triangle Dulux Painting 25mm Thickness Wood Wool Acoustic Panel Office Wall Soundproof
Cement-bonded wood wool acoustic panel consist of natural material wood ,and cement extracted from mineral resources , it provides a healthy and strong material with unique sound absorbing properties in the production of wood wool acoustic panel , we only use certified wood .
All of the wood is a proportion of FSC-certified .
Product Introduction :
|
Material |
Import New Zealand poplar wood |
|
Wood fiber width |
1mm / 2mm / 3mm / TBD |
|
Panel standard thick |
15mm / 25mm / 38mm / 50mm ect |
|
Finish |
Nature / Panting |
|
Color |
Choose from RAL , DULUX ect |
|
Panel Size |
1200*600mm / 2440*1220mm / TBD |
|
Edge treatment |
90° clean cut / 45° beveling |
Tolerance and specifications :
The following General Tolerances Apply for all SKUs
|
Requirement |
Dimension / Specification |
Tolerance |
|
Beveled Edge |
45% |
±5% |
|
Beveled Edge Moisture Content (Before Cutting Process) |
8.5 mm |
±2 mm |
|
Moisture Content (Final Inspection) |
25 % |
± 15% (10% to 40% MC) |
|
Wood Fiber Thickness |
1mm (3/64") |
± 0.25mm (± 0.010") |
|
Panel Flatness |
5mm Maximum |
Range: 0mm to 5mm |
NRC Test Report :
According to BS EN ISO 354:2003 “Acoustics -Measurement of sound absorption in a reverberation room"
(equivalent to GB/T 20247-2006)in the Acoustic Testing Services Limited.
Fireproof Performance :
In accordance with ASTM-E84-15 Standard Test Method for Surface Burning Characteristics of Building Materials , result in Class A
Painting Color Options :
RAL or DULUX color card or provide us the colors to match the most similar one .
Customized WW ceiling application reference :
FAQ
1. Q: Can I install wood wool acoustic panel in wet rooms ?
A : Yes , it can be used in wet rooms without problems , we have many years of experience using in places such as swimming baths , locker rooms , bathrooms and summer houses with swimming pool .
2. Q: How many screws should I use per wood wool acoustic panel installation ?
A: panel size 600*600mm - 4 screws per panel
panel size 1200*600mm - 6 screws per panel
panel size 2400*600mm - 10 screws per panel
