| Place of Origin: | China |
|---|---|
| Brand Name: | Brotex Acoustic |
| Certification: | FSC / ISO / SGS / Intertek |
| Model Number: | 2/2/0.5mm |
| Minimum Order Quantity: | 50㎡ |
| Price: | $107.42 -$125.98 /㎡ |
| Packaging Details: | Carton / Pallet |
| Delivery Time: | 2-3 weeks |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 ㎡/ month |
| Pattern: | 1.8/1.8/0.5mm , 2/2/0.5mm , 3/3/0.5mm | Finish: | Real Veneer / Laminate / Melamine |
|---|---|---|---|
| Core: | Charcoal Board / MDF | Fleece: | Soundtex / Freudenberg |
| Standard Panel Size: | 1200*600mm / 2400*1200mm / TBC | Standard Core Thick: | 15mm / 18mm / TBC |
| Hole Design: | Square / Rhombic | Edge Option: | Type A / Type C |
| Woodgrain: | Along Length / Along Width | Application: | Wall / Ceiling |
| Highlight: | 0.5mm Micro Perforated Acoustic Panel,Soundproof Micro Perforated Acoustic Panel,Flame Retardant perforated wood acoustic panels |
||

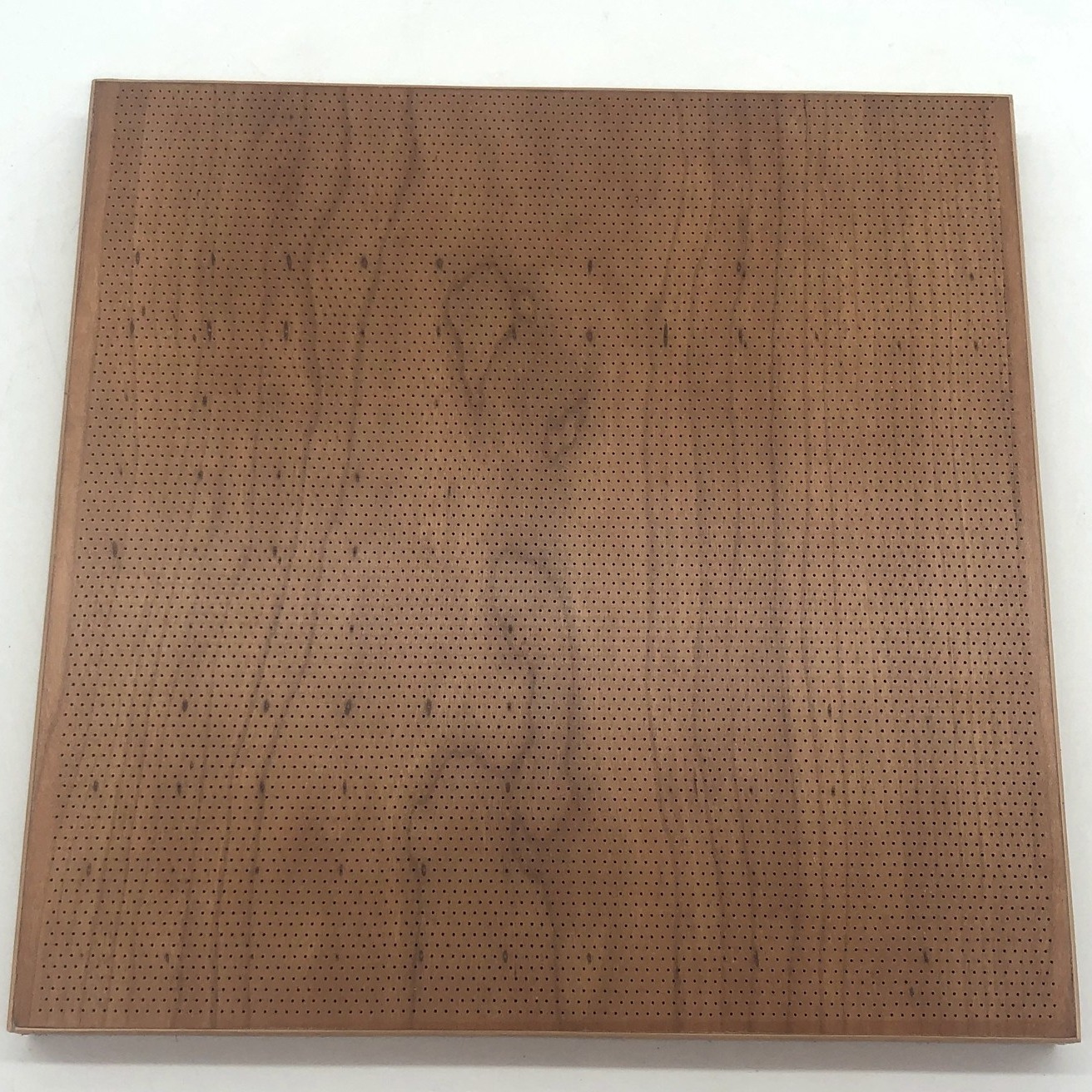

0.5mm Timber Micro Perforated Acoustic Panel Office Soundproof Flame Retardant Board
Nowadays , noise control had become one of the major challenges of our time.
This should be taken into account in the early stages of design and construction ,
as the low-frequency sound is usually transmitted through the structure rather than through the air.
One of the structures that are used to solve the problem of sounds with a low-frequency brand is the 0.5mm invosible micro hole of the micro perforated acoustic panel which are the perfect soundproof product combine of the high absorption and excellent interior decorated purpose
Micro perforated come in 3 standard patterns :
① 1.8/1.8/0.5mm ② 2/2/0.5mm ③ 3/3/0.5mm
Advantage of micro perforated acoustic panel :
The absolutely top product in our range
ideal for all materials and surfaces
Almost invisible acoustic material with high absorption
Very aesthetic and functional
Up to 600'000 holes every m² possible
Mildew and termite resistant
|
Pattern |
1.8/1.8/0.5mm,2/2/0.5mm,3/3/0.5mm |
|
Finish |
Real veneer / laminate / melamine |
|
Core |
Charcoal board / MDF |
|
Fleece |
Soundtex / Freudenberg |
|
Standard panel size |
1200*600mm / 2400*1200mm / TBD |
|
Standard core thick |
15mm / 18mm / TBD |
|
Hole option |
Square / Rhombic |
|
Edge option |
Type A 90° clean cut / Type C 凹 all sides |
|
Wood grain |
Along length / Along width |
Dimensions :
The panels can be manufactured to the desired size with approval shop drawings ,
thereby requiring no filed cutting for faster installation .
Brotex Acoustic leading production capabilities make the largest panels in the industry 3050*1220mm as customized .
Sustainability :
FSC certified 70.8% pre-consumer recycled content
Acoustic Performance :
NRC = 0.90 base on ISO 354:2003 Acoustics-Measurement of Sound Absorption in a Reverberation Room .
Indoor Air Quality :
TOVs with reference to ISO 16000-9:2006/ COR1-2007 & ISO 16000-6:2021 & ISO 16000-3:2022
Fire performance :
Fire-Rated Test = Class A by ASTM E84-15b Standard Test Method for Surface Burning Characteristics of Building Materials .
Wood veneer :
The panel can be customized in a variety of wood veneers.
Brotex Acoustic lays up its own veneer in 12 units as the standard items .
More slip-matched , custom lay-up options and a control sample match all are avaliable .
Meeting room job reference :
Please kindly contact us for more acoustic panel project inspire ideas .
