| Place of Origin: | China |
|---|---|
| Brand Name: | Brotex Acoustic |
| Certification: | FSC / ISO / SGS / Intertek |
| Model Number: | 2/2/0.5mm |
| Minimum Order Quantity: | 50㎡ |
| Price: | $115.42 -$129.98 /㎡ |
| Packaging Details: | Carton / Pallet |
| Delivery Time: | 2-3 weeks |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 ㎡/ month |
| Pattern: | 1.8/1.8/0.5mm , 2/2/0.5mm , 3/3/0.5mm | Finish: | Real Veneer / Laminate / Melamine |
|---|---|---|---|
| Laminate: | Lamitak / Formica / TBC | Core: | Charcoal Board / MDF |
| Fleece: | Soundtex / Freudenberg | Standard Panel Size: | 1200*600mm / 2400*1200mm / TBC |
| Standard Core Thick: | 15mm / 18mm / TBC | Hole Design: | Square / Rhombic |
| Edge Option: | Type A / Type C | Woodgrain: | Along Length / Along Width |
| Application: | Wall / Ceiling | Job: | Auditorium / Conference Hall / School / Office |
| Highlight: | Woodgrain micro perforated wood panels,15mm micro perforated wood panels,Woodgrain micro perforated wood |
||
Hospital Woodgrain Laminate Micro Perforated Acoustic Wall Panel Soundproof Interior Decorated
With uncompromised aesthetics , you never have to sacrifice form over function with micro perforated acoustic panel .
The acoustic wood wall and ceiling panels provide exceptional acoustic performance in tandem with pleasing design features .
Microperf Acoustic product are intended to pair seamlessly with your existing or planned designs , making them an easy fit for any spaces .
Intentionally engineered to offer pleasing design along with unmatched acoustic benefits together offer a truly seamless integration of acoustic product into all types of projects .
MicroPerf Visibility :
Micro perforated come in 3 standard patterns :
① 1.8/1.8/0.5mm ② 2/2/0.5mm ③ 3/3/0.5mm
Advantage of micro perforated acoustic panel :
The absolutely top product in our range
ideal for all materials and surfaces
Almost invisible acoustic material with high absorption
Very aesthetic and functional
Up to 600'000 holes every m² possible
Mildew and termite resistant
|
Pattern |
1.8/1.8/0.5mm,2/2/0.5mm,3/3/0.5mm |
|
Finish |
Real veneer / laminate / melamine |
|
Core |
Charcoal board / MDF |
|
Fleece |
Soundtex / Freudenberg |
|
Standard panel size |
1200*600mm / 2400*1200mm / TBD |
|
Standard core thick |
15mm / 18mm / TBD |
|
Hole option |
Square / Rhombic |
|
Edge option |
Type A 90° clean cut / Type C 凹 all sides |
|
Wood grain |
Along length / Along width |
Dimensions :
The panels can be manufactured to the desired size with approval shop drawings ,
thereby requiring no filed cutting for faster installation .
Brotex Acoustic leading production capabilities make the largest panels in the industry 3050*1220mm as customized .
Sustainability :
FSC certified 70.8% pre-consumer recycled content
Acoustic Performance :
NRC = 0.90 base on ISO 354:2003 Acoustics-Measurement of Sound Absorption in a Reverberation Room .
Indoor Air Quality :
TOVs with reference to ISO 16000-9:2006/ COR1-2007 & ISO 16000-6:2021 & ISO 16000-3:2022
Fire performance :
Fire-Rated Test = Class A by ASTM E84-15b Standard Test Method for Surface Burning Characteristics of Building Materials .

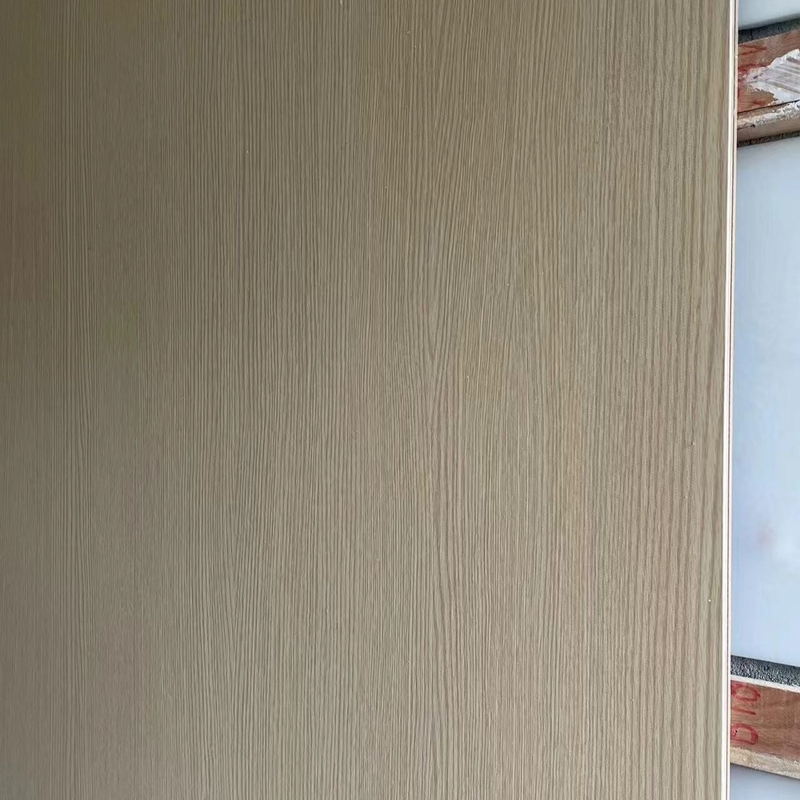

Wood veneer :
The panel can be customized in a variety of wood veneers.
Brotex Acoustic lays up its own veneer in 12 units as the standard items .
More slip-matched , custom lay-up options and a control sample match all are avaliable .
Note : These color samples are reproduced by a printing process so the colors represented may not match the wood's actual color , in addition since no two trees are identical , wood can be expected to differ both in color and graining . This is what makes wood so beautiful. Stained sample will be provided for approval before project goes into production .
Hospital wall job reference :
Please kindly contact us for more acoustic panel project inspire ideas .
