Residential Office Wall Perforated Acoustic Panel Wood Wall 18mm

Basic Information
Place of Origin: China
Brand Name: Brotex Acoustic
Certification: FSC / CE / ISO / SGS / Intertek
Model Number: 8/8/3mm
Minimum Order Quantity: 50㎡
Price: $37.42 -$49.98 /㎡
Packaging Details: Carton / Pallet
Delivery Time: 2-3 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 ㎡/ month
Detail Information
Pattern: 8/8/3mm Finish: Real Veneer / Laminate / Melamine
Laminate: Lamitak / Formica / TBC Core: Charcoal Board / MDF
Fireproof: Class B Fleece: Soundtex / Freudenberg
Standard Panel Size: 1200*600mm / 2400*1200mm / TBC Standard Core Thick: 15mm / 18mm / TBC
Hole Design: Square / Rhombic Edge Option: Type A / Type C
Woodgrain: Along Length / Along Width Application: Auditorium / Conference Hall / School / Office
Highlight:

Residential Perforated Acoustic Panel

,

18mm Perforated Acoustic Panel

,

18mm perforated wood wall panels


Product Description

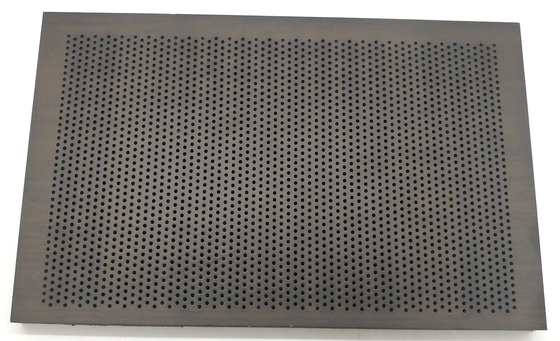

8/8/3mm Laminate Residential Office Wall Perforated Acoustic Panel Sound Absorbing Board



Perforated solutions , a basic and time tested approack to sound absorption .

Profiles are created with eigher one single diameter hole or with dual-diameter solutions by the options for various hole sizes , spacings and customized arrangements are workable .



With the traditional elegant look of wood with exceptional sound absorption properties, perforated panels are an excellent choice for a variety of both ceiling and wall applications.

Residential Office Wall Perforated Acoustic Panel Wood Wall 18mm 0 Residential Office Wall Perforated Acoustic Panel Wood Wall 18mm 1

Pattern ​​

8/8/3mm

Finish

Real veneer / laminate / melamine

Core

Charcoal board / MDF

Fleece

Soundtex  / Freudenberg

Standard panel size

1200*600mm / 2400*1200mm / TBD

Standard core thick

15mm / 18mm / TBD

Hole option

Square / Rhombic

Edge option

Type A 90° clean cut / Type C 凹 all sides

Wood grain

Along length / Along width

Border

Non-perforated or Customized



Hole Options :

Residential Office Wall Perforated Acoustic Panel Wood Wall 18mm 2

Dimensions :

The panels can be manufactured to the desired size with approval shop drawings ,

thereby requiring no filed cutting for faster installation .

Brotex Acoustic leading production capabilities make the largest panels in the industry 3050*1220mm as customized .



Edge Options :

Residential Office Wall Perforated Acoustic Panel Wood Wall 18mm 3

Sustainability :

FSC certified 70.8% pre-consumer recycled content



Indoor Air Quality :

TOVs with reference to ISO 16000-9:2006/ COR1-2007 & ISO 16000-6:2021 & ISO 16000-3:2022
downLoadImg (7).jpg

Application area :

Residential Office Wall Perforated Acoustic Panel Wood Wall 18mm 5

Fireproof Performance :

Fire-Rated Test = Class A by ASTM E84-15b Standard Test Method for Surface Burning Characteristics of Building Materials .

Residential Office Wall Perforated Acoustic Panel Wood Wall 18mm 6Residential Office Wall Perforated Acoustic Panel Wood Wall 18mm 7

Installation Info :

Residential Office Wall Perforated Acoustic Panel Wood Wall 18mm 8Residential Office Wall Perforated Acoustic Panel Wood Wall 18mm 9Residential Office Wall Perforated Acoustic Panel Wood Wall 18mm 10

Wall job reference :

Residential Office Wall Perforated Acoustic Panel Wood Wall 18mm 11 Residential Office Wall Perforated Acoustic Panel Wood Wall 18mm 12

More acoustic panel project inspire ideas please kindly contact Brotex Acoustic for details , thank you !
