| Place of Origin: | China |
|---|---|
| Brand Name: | Brotex Acoustic |
| Certification: | FSC / CE / ISO / SGS / Intertek |
| Model Number: | 16/16/8mm |
| Minimum Order Quantity: | 50㎡ |
| Price: | $27.42 -$39.98 /㎡ |
| Packaging Details: | Carton / Pallet |
| Delivery Time: | 2-3 weeks |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 ㎡/ month |
| Pattern: | 1616/8mm | Finish: | Real Veneer / Laminate / Melamine |
|---|---|---|---|
| Laminate: | Lamitak / Formica / TBC | Core: | Charcoal Board / MDF |
| Fireproof: | Class A | Fleece: | Soundtex / Standard |
| Standard Panel Size: | 1200*600mm / 2400*1200mm / TBC | Standard Core Thick: | 15mm / 18mm / TBC |
| Hole Design: | Square / Rhombic | Edge Option: | Type A / Type C |
| Woodgrain: | Along Length / Along Width | Application: | Auditorium / Conference Hall / School / Office |
| Highlight: | 8mm Perforated Acoustic Panels,MDF Perforated Acoustic Panels |
||
16/16/6mm Veneer Ceiling Tile Perforated Acoustic Panel Sound Absorbing Board
Perforated solutions , a basic and time tested approack to sound absorption .
Profiles are created with eigher one single diameter hole or with dual-diameter solutions by the options for various hole sizes , spacings and customized arrangements are workable .
With the traditional elegant look of wood with exceptional sound absorption properties, perforated panels are an excellent choice for a variety of both ceiling and wall applications.
|
Pattern |
16/16/6mm |
|
Finish |
Real veneer / laminate / melamine |
|
Core |
Charcoal board / MDF |
|
Fleece |
Soundtex / Freudenberg |
|
Standard panel size |
1200*600mm / 2400*1200mm / TBD |
|
Standard core thick |
15mm / 18mm / TBD |
|
Hole option |
Square / Rhombic |
|
Edge option |
Type A 90° clean cut / Type C 凹 all sides |
|
Wood grain |
Along length / Along width |
| Border |
Non-perforated or Customized
|
Hole Options :
Dimensions :
The panels can be manufactured to the desired size with approval shop drawings ,
thereby requiring no filed cutting for faster installation .
Brotex Acoustic leading production capabilities make the largest panels in the industry 3050*1220mm as customized .
Edge Options :
Sustainability :
FSC certified 70.8% pre-consumer recycled content
Indoor Air Quality :
TOVs with reference to ISO 16000-9:2006/ COR1-2007 & ISO 16000-6:2021 & ISO 16000-3:2022
Application area :
Fireproof Performance :
Fire-Rated Test = Class A by ASTM E84-15b Standard Test Method for Surface Burning Characteristics of Building Materials .
Installation Info :

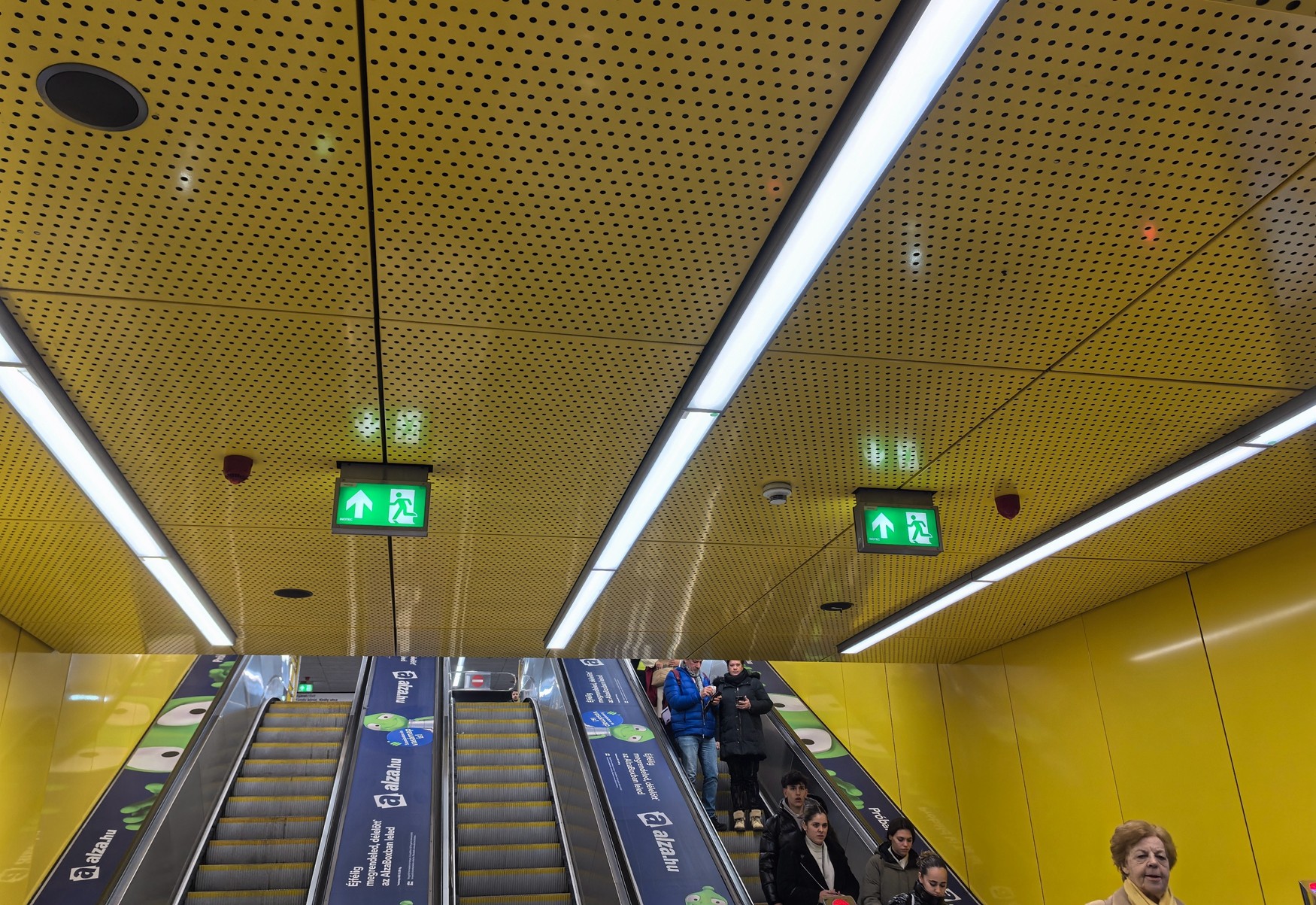

Ceiling job reference :
More acoustic panel project inspire ideas please kindly contact Brotex Acoustic for details , thank you !
