Detail Information

Pattern:	2/2/0.5mm	NRC:	0.9
Finish:	Real Veneer / Laminate / Melamine	Laminate:	Lamitak / Formica / TBC
Core:	Charcoal Board / MDF	Fireproof:	Class B
Fleece:	Soundtex / Freudenberg	Standard Panel Size:	1200600mm / 24001200mm / TBC
Standard Core Thick:	15mm / 18mm / TBC	Hole Design:	Square / Rhombic
Edge Option:	Type A / Type C	Woodgrain:	Along Length / Along Width
Installation:	Wall / Ceiling	Application:	Auditorium / Conference Hall / School / Office
Highlight:	Micro Perforated Acoustic Panel veneer finish , Acoustic Panel 2mm NRC 0.9 , Micro Perforated Panel 0.5mm soundproof

Product Description

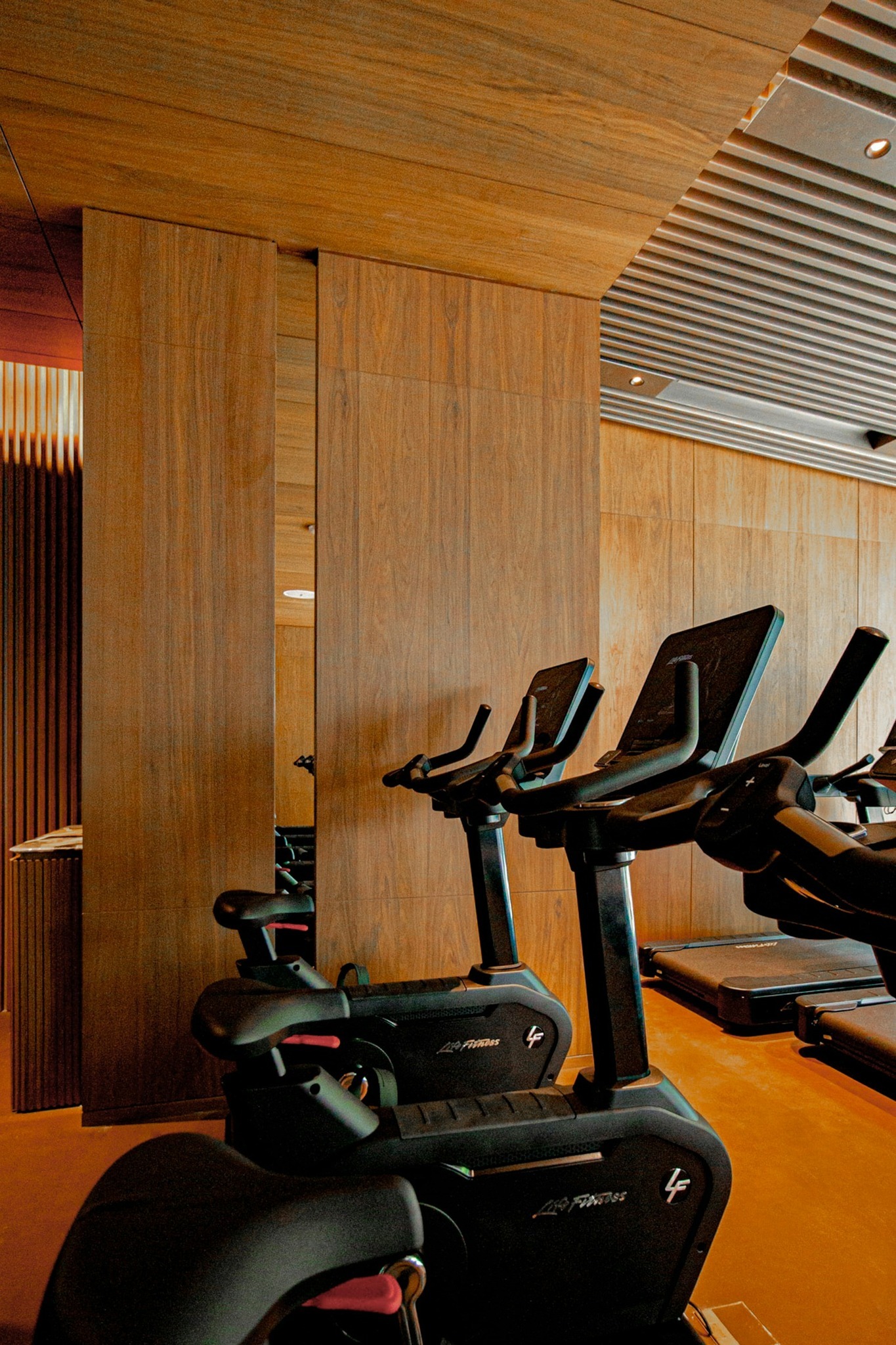

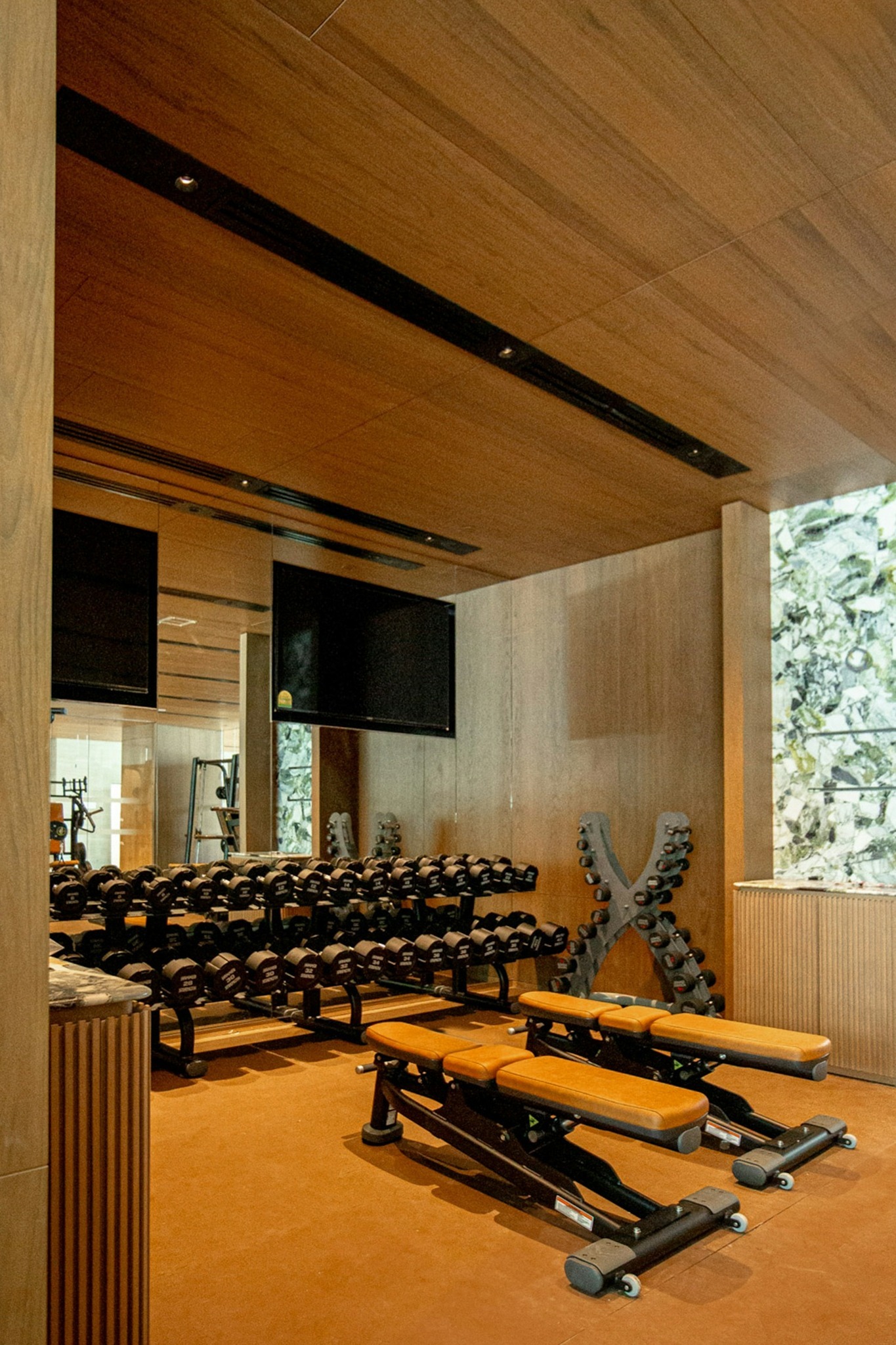

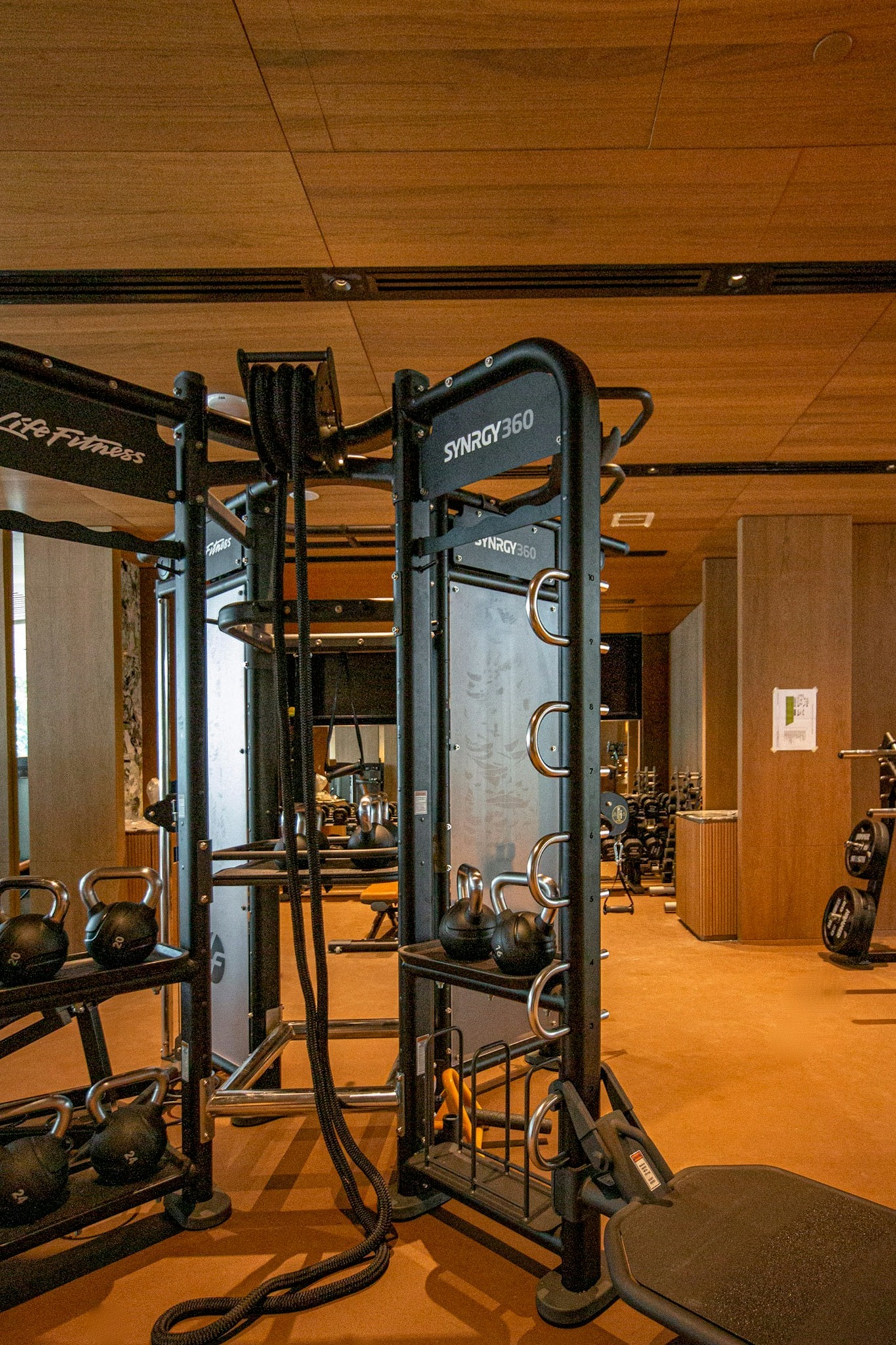

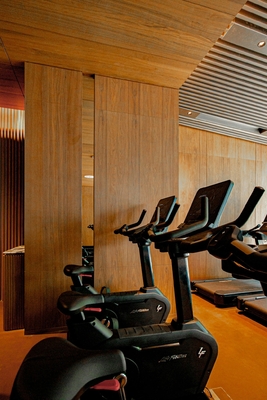

Fitness Center Ceiling Tile Veneer Microperforated Acoustic Panels Soundproofing Board

Product Specifications

Attribute	Value
Pattern	2/2/0.5mm
NRC	0.9
Finish	Real Veneer / Laminate / Melamine
Laminate	Lamitak / Formica / TBC
Core	Charcoal Board / MDF
Fireproof	Class B
Fleece	Soundtex / Freudenberg
Standard panel size	1200600mm / 24001200mm / TBC
Standard core thick	15mm / 18mm / TBC
Hole design	Square / Rhombic
Edge option	Type A / Type C
Woodgrain	Along length / Along width
Installation	Wall / Ceiling
Application	Auditorium / Conference hall / School / Office

MicroPerf Visibility

Discover innovative micro perforated acoustic panel solution, seamlessly combining acoustic performance with aesthetic excellence.

With uncompromised aesthetics, you never have to sacrifice form over function with micro perforated acoustic panel. The acoustic wood wall and ceiling panels provide exceptional acoustic performance in tandem with pleasing design features.

Microperf Acoustic products are intended to pair seamlessly with your existing or planned designs, making them an easy fit for any spaces.

Micro Perforated Acoustic Panel Features

Available in panels, planks, beams/baffles, partitions and custom configurations
Offers absorption in a beautiful millwork finish
Choose from commercially available wood from matte to high-gloss finish and customized graphics
Unperforated borders and custom spacing available
Installation is easy to wall with Z-clips and T-grid for ceiling

Hole Options

Dimensions

The panels can be manufactured to the desired size with approval shop drawings, thereby requiring no field cutting for faster installation.

Brotex Acoustic leading production capabilities make the largest panels in the industry 3050*1220mm as customized.

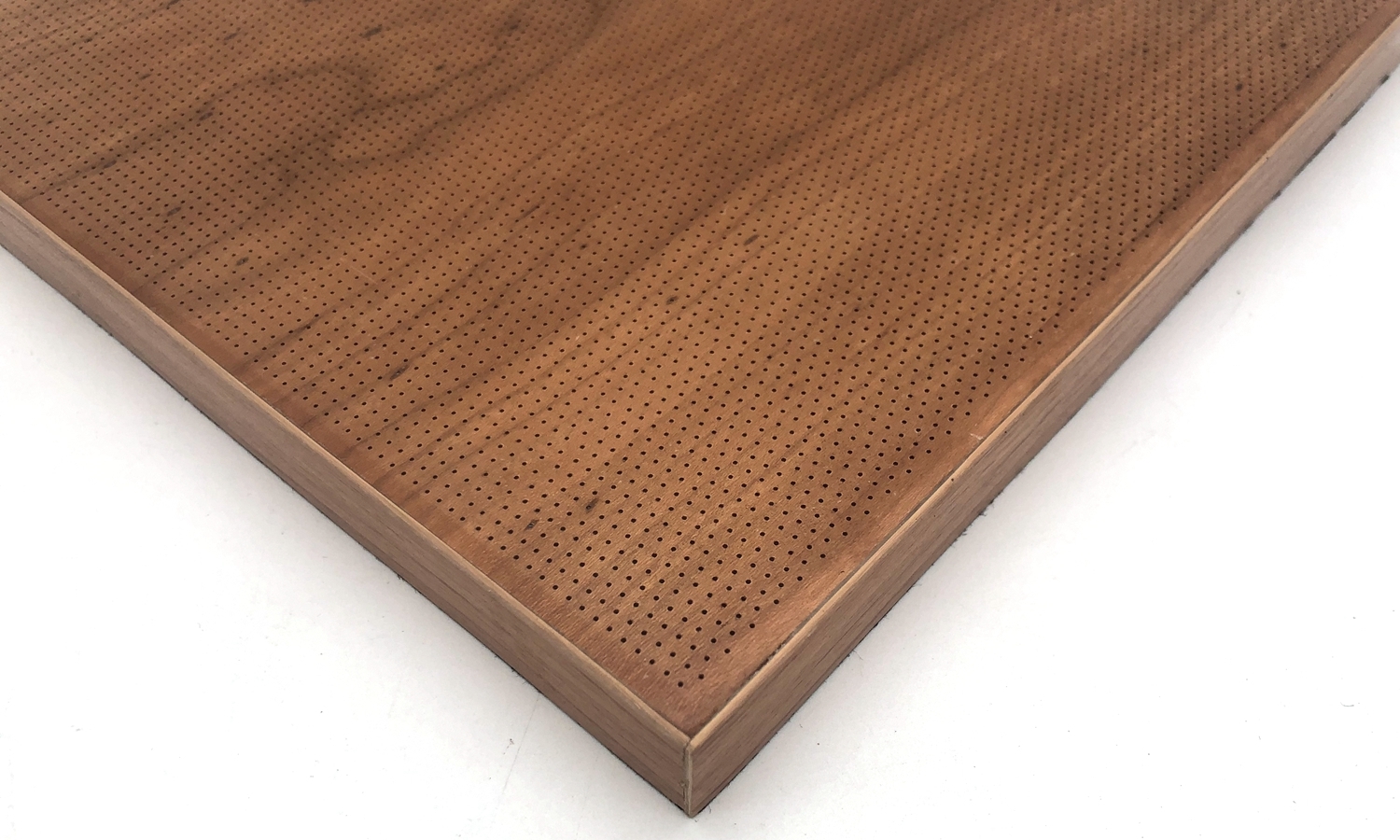

Edge Options

Sustainability

FSC certified 70.8% pre-consumer recycled content

Acoustic Performance

NRC = 0.90 based on ISO 354:2003 Acoustics-Measurement of Sound Absorption in a Reverberation Room.

Indoor Air Quality

TOVs with reference to ISO 16000-9:2006/ COR1-2007 & ISO 16000-6:2021 & ISO 16000-3:2022

Fire Performance

Fire-Rated Test = Class A by ASTM E84-15b Standard Test Method for Surface Burning Characteristics of Building Materials.

Laminate Formica Finish

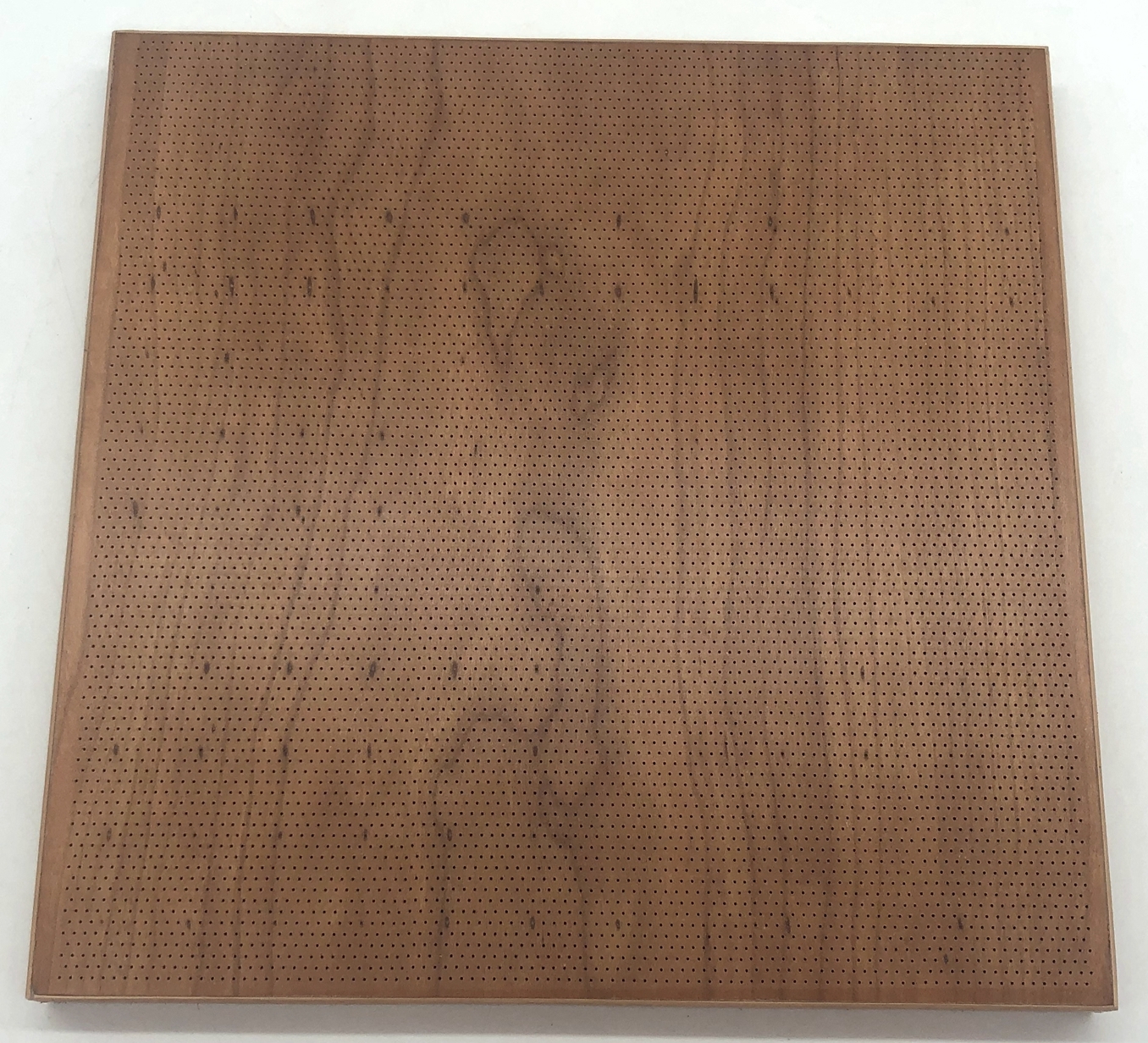

Wood Veneer

The panel can be customized in a variety of wood veneers. Brotex Acoustic lays up its own veneer in 12 units as the standard items. More slip-matched, custom lay-up options and a control sample match all are available.

Note: These color samples are reproduced by a printing process so the colors represented may not match the wood's actual color. In addition, since no two trees are identical, wood can be expected to differ both in color and graining. This is what makes wood so beautiful. Stained sample will be provided for approval before project goes into production.

Pallet Package

Wall Standard Installation

Microperforated Acoustic Panel Job Reference

Please kindly contact us for more acoustic panel project inspiration ideas.

Tag:

Place of Origin:	China
Brand Name:	Brotex Acoustic
Certification:	FSC / ISO / SGS / Intertek
Model Number:	2/2/0.5mm

Minimum Order Quantity:	50㎡
Price:	$95.42 -$105.98 /㎡
Packaging Details:	Carton / Pallet
Delivery Time:	2.5-3 weeks
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	5000 ㎡/ month
