| Place of Origin: | China |
|---|---|
| Brand Name: | Brotex Acoustic |
| Certification: | CE / ISO / SGS / Intertek |
| Model Number: | Aluminum baffle |
| Minimum Order Quantity: | 50㎡ |
| Price: | $60.79 -$77.42 /㎡ |
| Packaging Details: | Carton / Pallet |
| Delivery Time: | 2-3 weeks |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 ㎡/ month |
| Pattern: | Aluminum Micro Hole | Finish: | PVDF Powder Coating |
|---|---|---|---|
| Color: | RAL Or Customized Woodgrain | Core: | Aluminum |
| Fireproof: | Non-combustible | Fleece: | Soundtex / Standard |
| Standard Panel Size: | 1200*600mm / 2400*1200mm / TBC | Standard Core Thick: | 25mm / 50mm / TBC |
| Hole Design: | Standard | Edge Option: | For Wall Or Ceiling |
| Woodgrain: | Along Length / Along Width | Application: | Auditorium / Conference Hall / School / Office |
| Highlight: | sound absorbing ceiling tiles,aluminum microperforated acoustic panels,suspended acoustic ceiling panels |
||
Acoustic panel allow you to achieve a more confortable environment whether that's in an office , restaurant , hotel .
A striking ceiling solution , acoustic baffles effectively prevent common acoustic issues such as reverberation and echo , whilst providing an eye-catching addition to your interior design .
Shop a range of ceiling baffles and wall panels, our collectiion of acoustic baffles offers a variety of shapes , sizes , designs , colors and materials to accommodate and demands of a diverse mix of spaces both acoustically and aesthetically .
![]()
Metalworks linear classics ceilings
Sound Absorption (NRC) around 0.70
Light reflectance up to 73%
Recycled content up to 35%
Sag / Humidity Resistance in standard
Materials in aluminum
Fire Performance Class A
Disinfectability fog , spray , wipe
Durability soli resistance , impanct resistance ,scratch resistance , scrubbability , washability

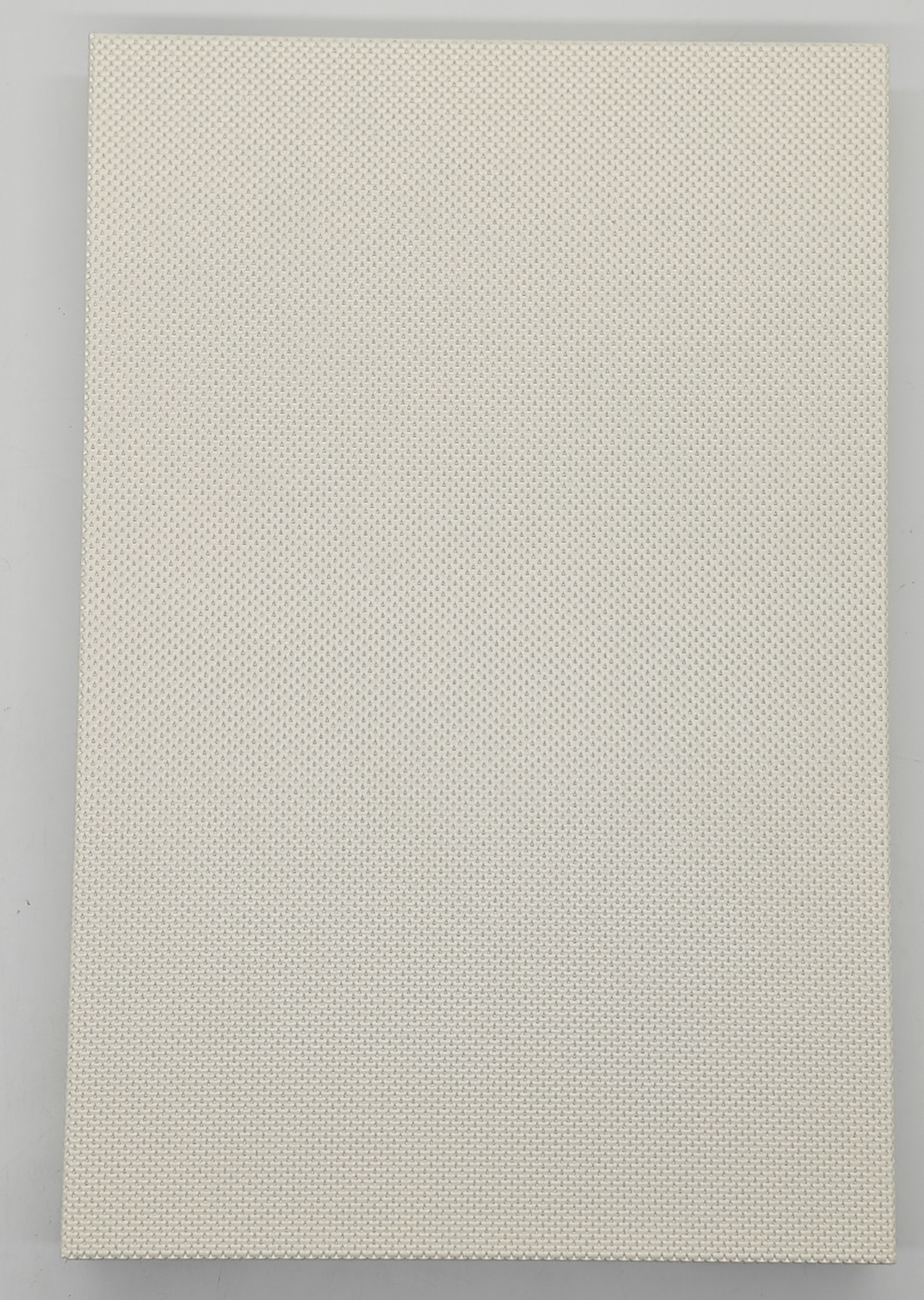

| Product | Aluminum micro perforated acoustic panel |
| Pattern | Standard micro-hole / Fence |
| Finish | RAL color / Woodgrain / Stone color / Brass / TBD |
| Coating | PVDF |
| Coating brand | PPG / AKZO / NIPPON / DNT / TBD |
| Core | Non-combustible aluminum |
| Panel size | Standard 1200*600mm / 2400*1200mm / TBD |
| Panel thickness | 25mm / 50mm / TBD |
| Hole options | Standard micro hole |
| Edge options | For wall / ceiling |
| Woodgrain | Along length / width |
| Border |
Standard / non-perforated / TBD |
Features :
| Smooth surface finish |
| Excellent NRC rating 1 when used as a lay-in ceiling tile , no acoustical liner needed |
| Cost - effective Tegular of flat lay-in ceiling tiles easily installa standard grid |
| Tested and proven to achieve are avaliable after delivery |
|
Woodgrain Available in anodized or custom printing finish |
Fireproof performance :
Available Test based on EN13501-1:2018
Fire classification of construction products and building elements -
Part 1 : Classification using data from reaction to fire tests result fire classification A1
![]()
Color finish options :
![]()
Ceiling / Wall installation info :
![]()

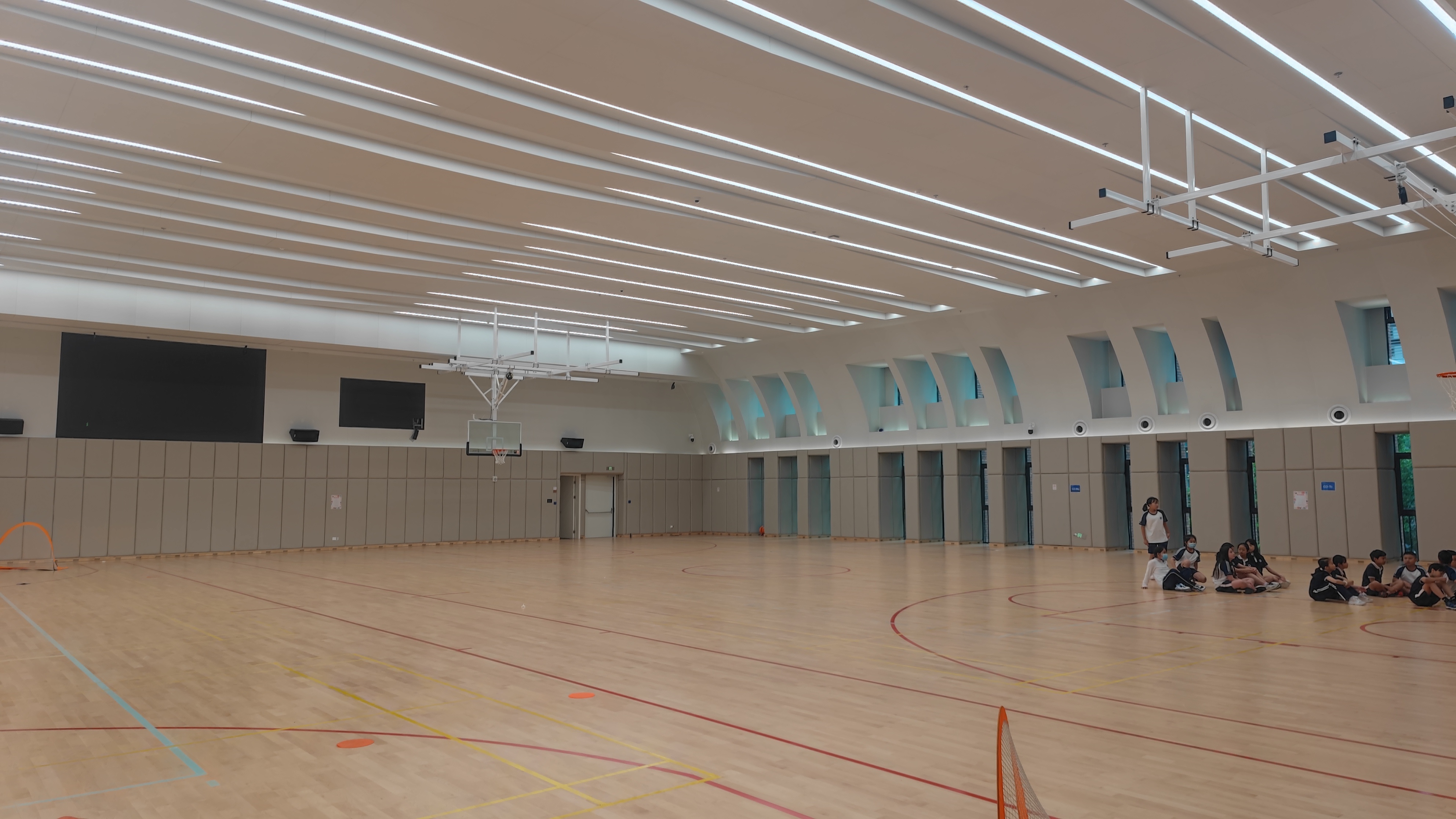

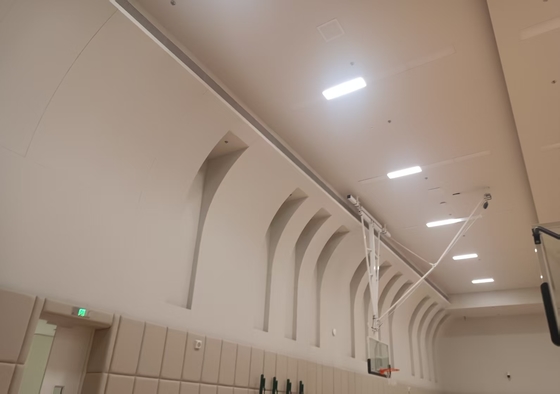

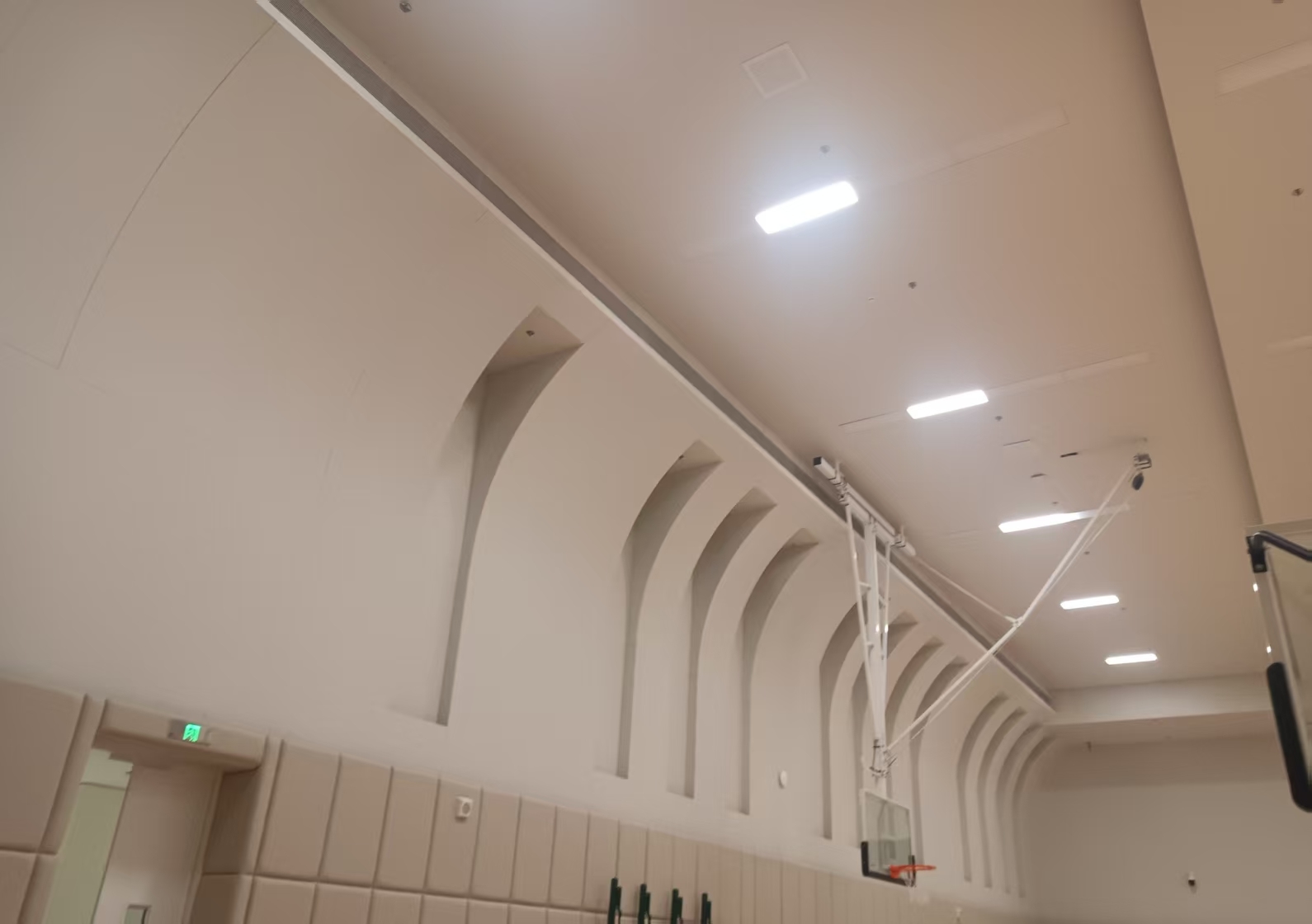

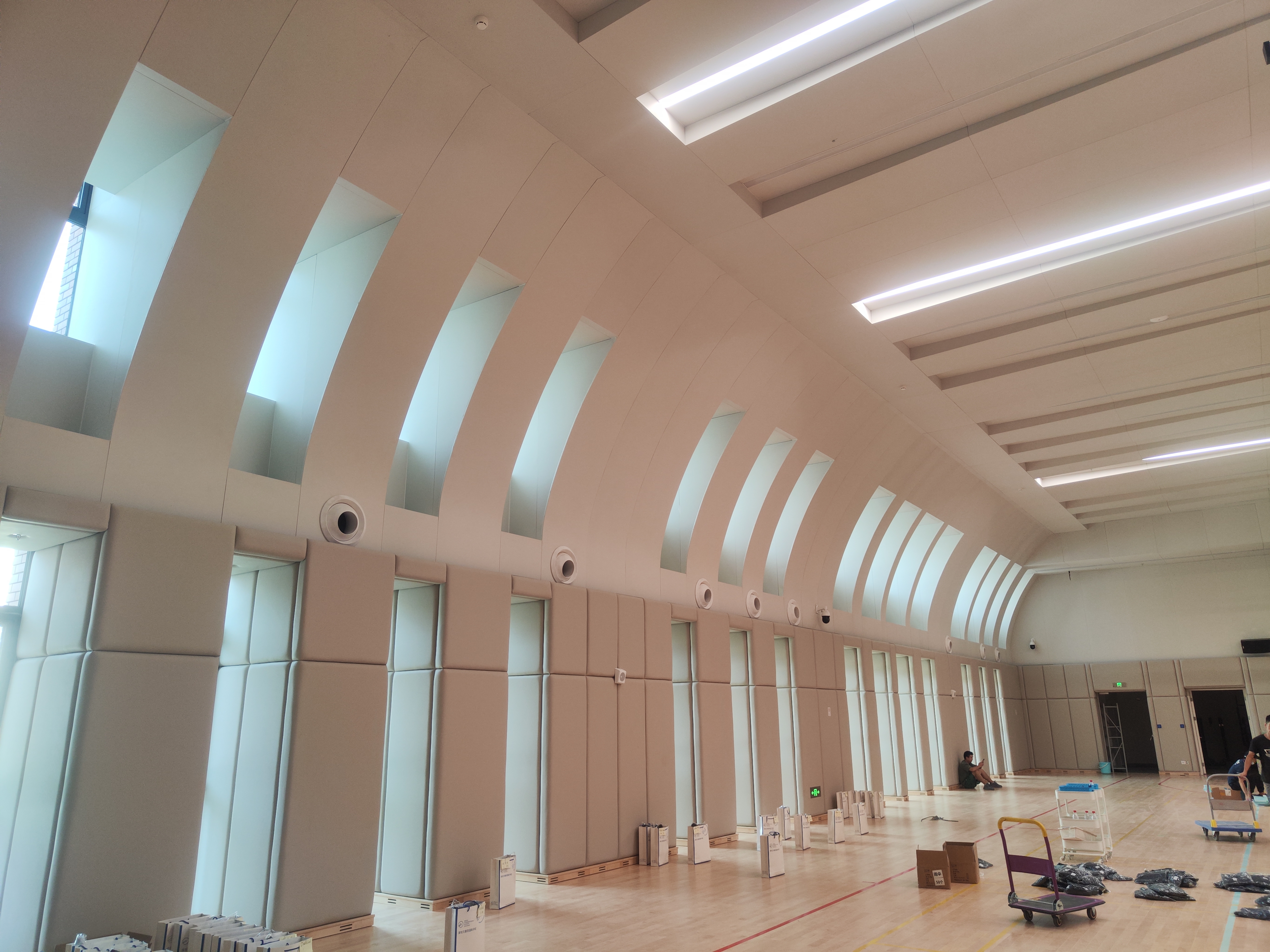

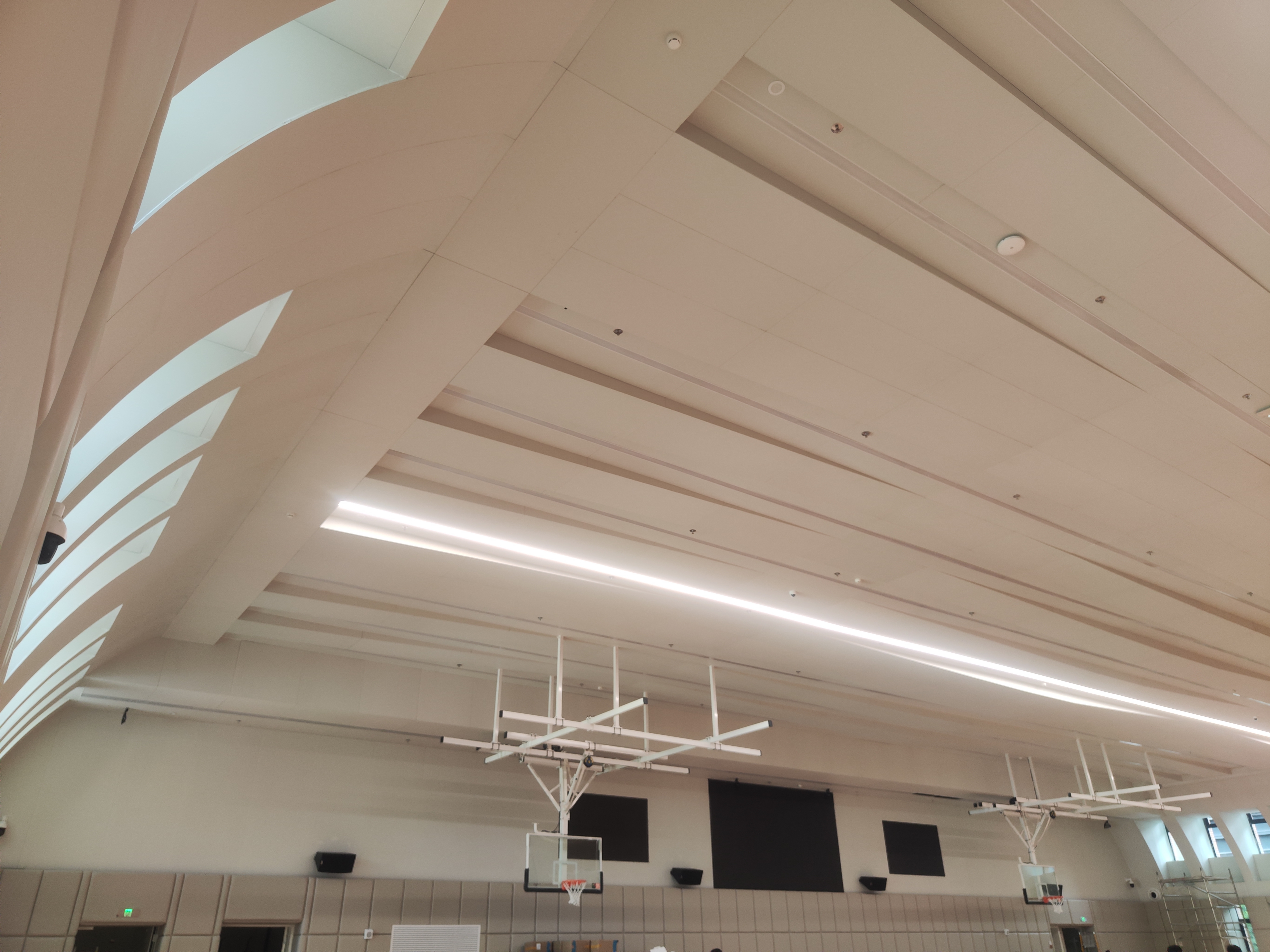

Aluminum micro perforated acoustic panel job reference :
FAQ :
More acoustic panel project inspire ideas please kindly contact Brotex Acoustic for details , thank you !
